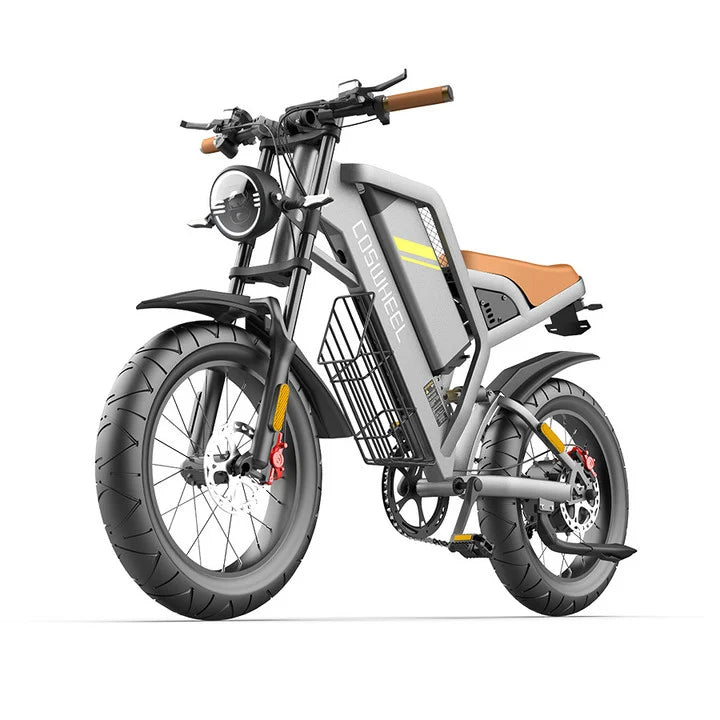

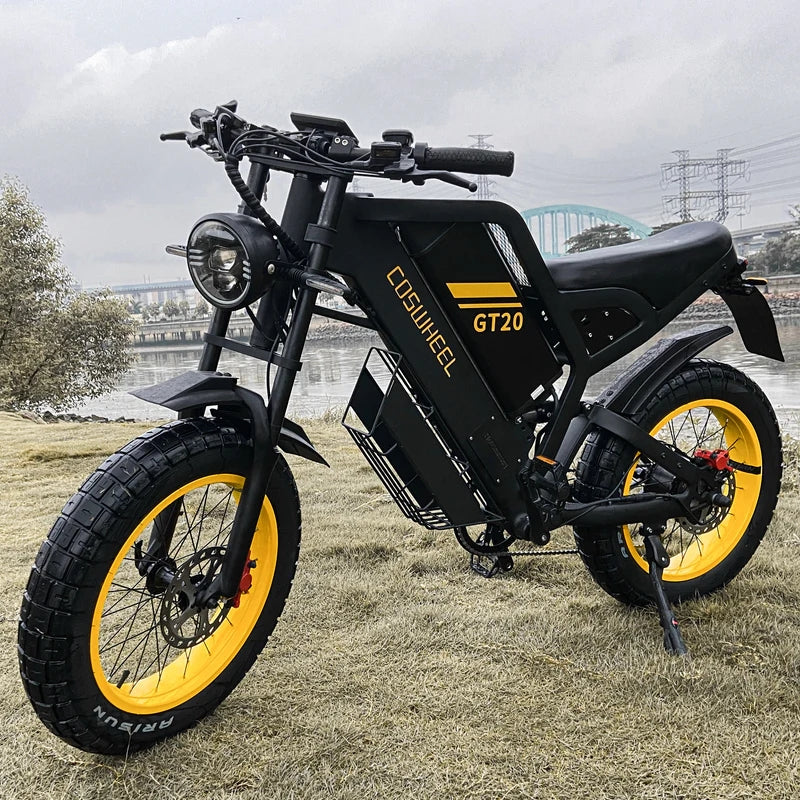

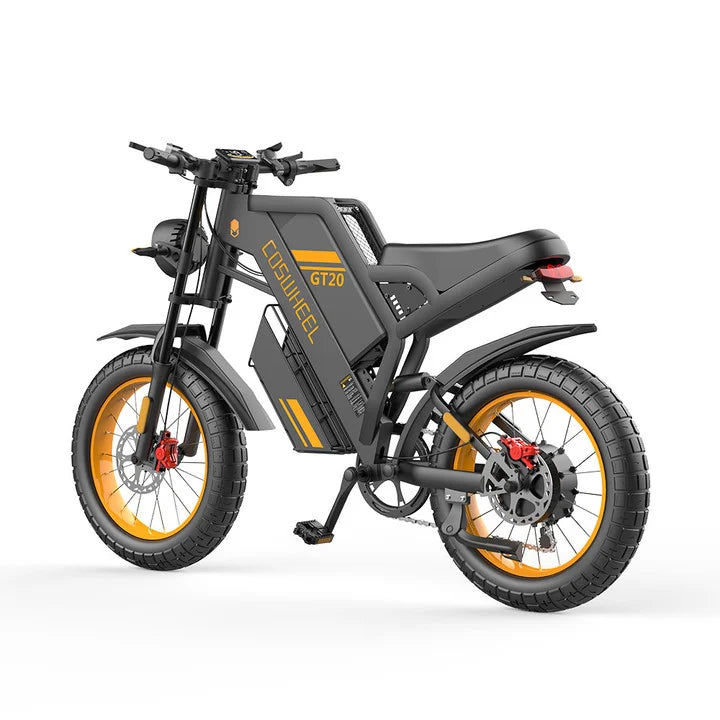

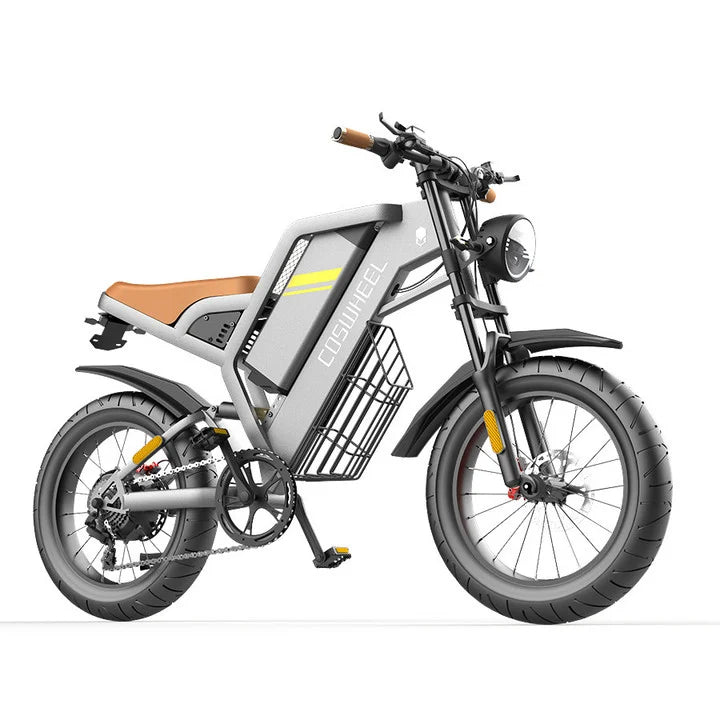

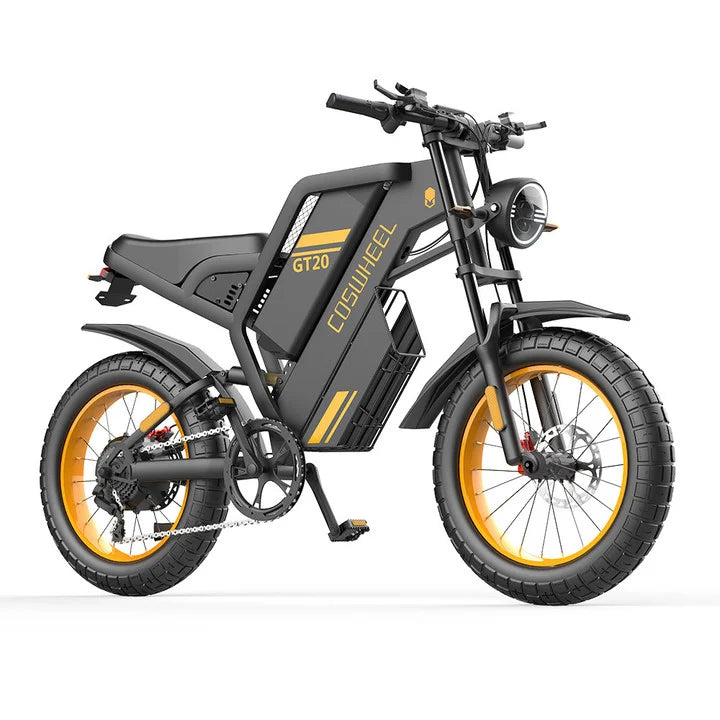

GT20 EBIKE 48V 15/20/25AH 1000W ELECTRIC ROAD BIKE
Description
torque 80N.m, can climb 30 degrees slope, fat tire motorcycle ebike
GT20 Specifications
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 50+miles (80km) in Class-2 throttle-only mode (pure electricity); 87miles (140km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
- Battery: 48V 25Ah Battery (Lithium 18650 Cells)
- Energy: 1200Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: ARISUN Off Road Tire 20" × 4.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Grip Twist Throttle
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours

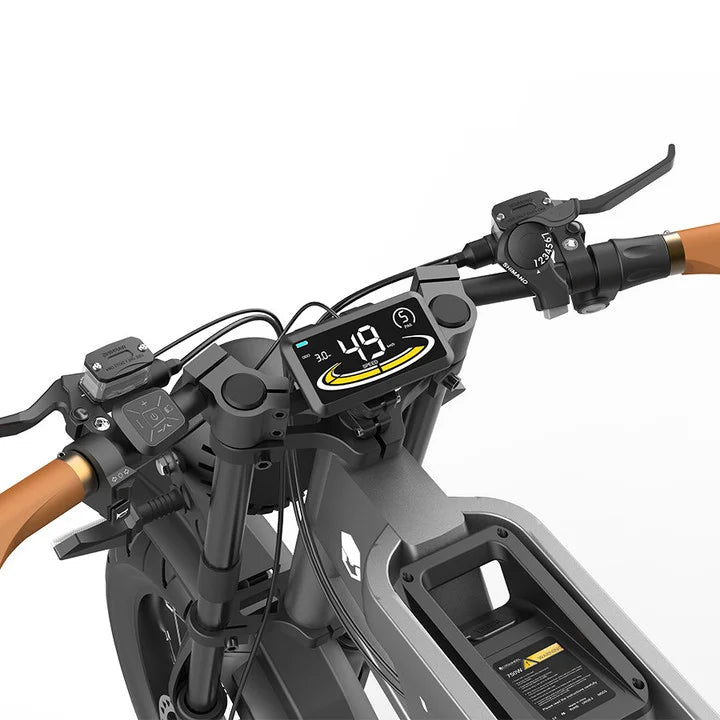

- Display: Easy Read LCD Display
- Controller: 48V 28A

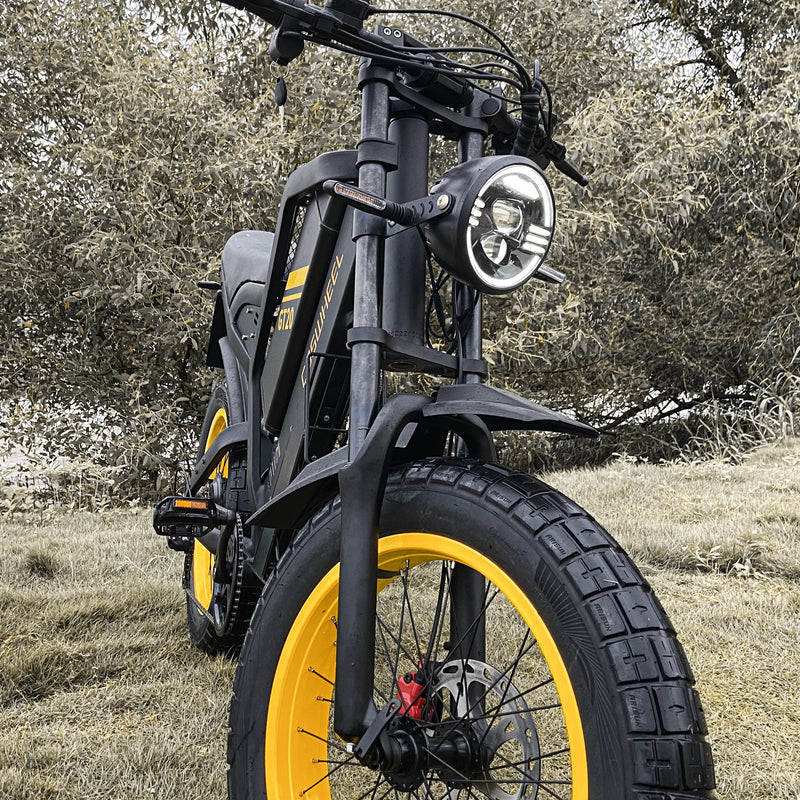

- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 27.2" *41.7" (180*69*106cm)
- Package Size: 59.4" * 13.8" * 36.2" (151*35*92cm)
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 50+miles (80km) in Class-2 throttle-only mode (pure electricity); 87miles (140km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
- Battery: 48V 25Ah Battery (Lithium 18650 Cells)
- Energy: 1200Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: ARISUN Off Road Tire 20" × 4.0" A820 60TPI with Meimeng Tire+PVC Line
- Throttle: Grip Twist Throttle
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 28A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Split Handlebar, φ32 φ22 Sand Black
- Suitable Height: 5'1" - 6'5"
- Seat Height: 32.6" (83cm)
- Bike Height: 41.7" (106cm)
- Wheelbase: 47.8" (121.5cm)
- Handlebar Width: 27.2" (69cm)
- Bike Weight: ≥99lbs (with Battery) (≥45kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 27.2" *41.7" (180*69*106cm)
- Package Size: 59.4" * 13.8" * 36.2" (151*35*92cm)

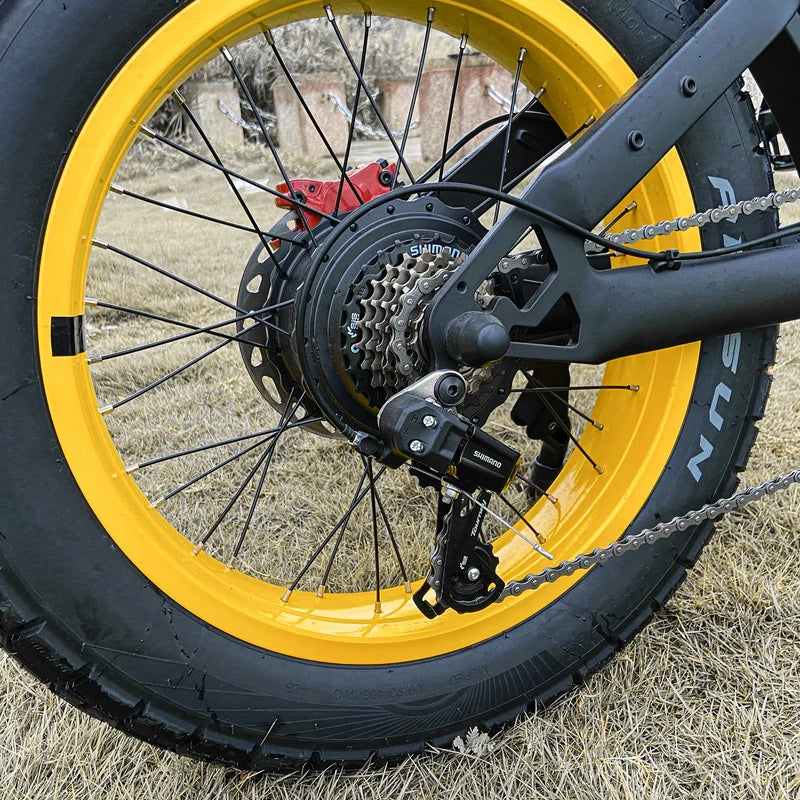

GT20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.

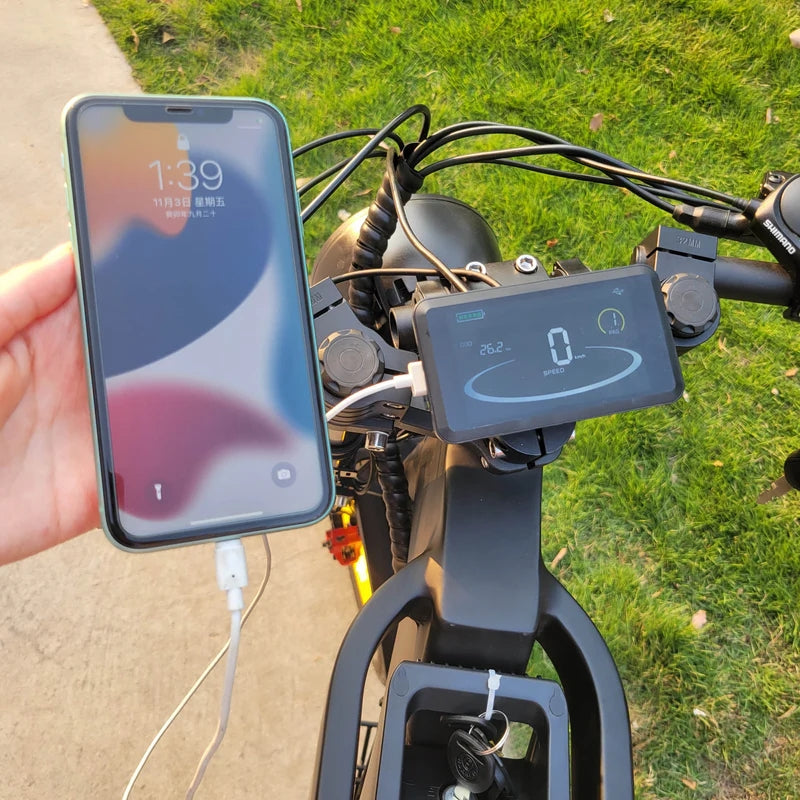

There is a USB 1AH charging port under the GT20 display, which is convenient for you to charge your mobile phone with low battery when riding outdoors, ensuring your safety.

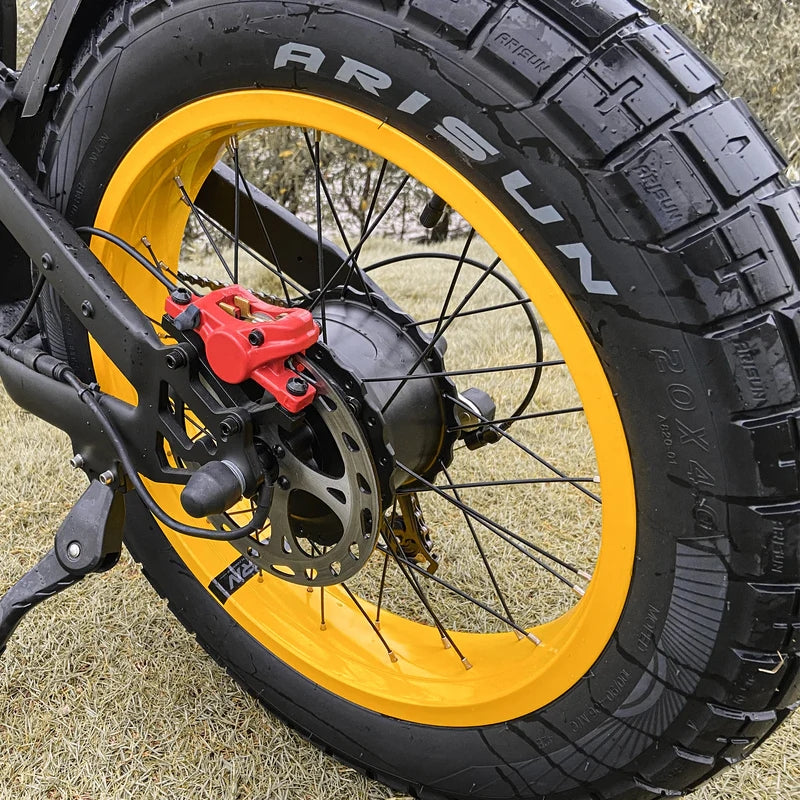

Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.

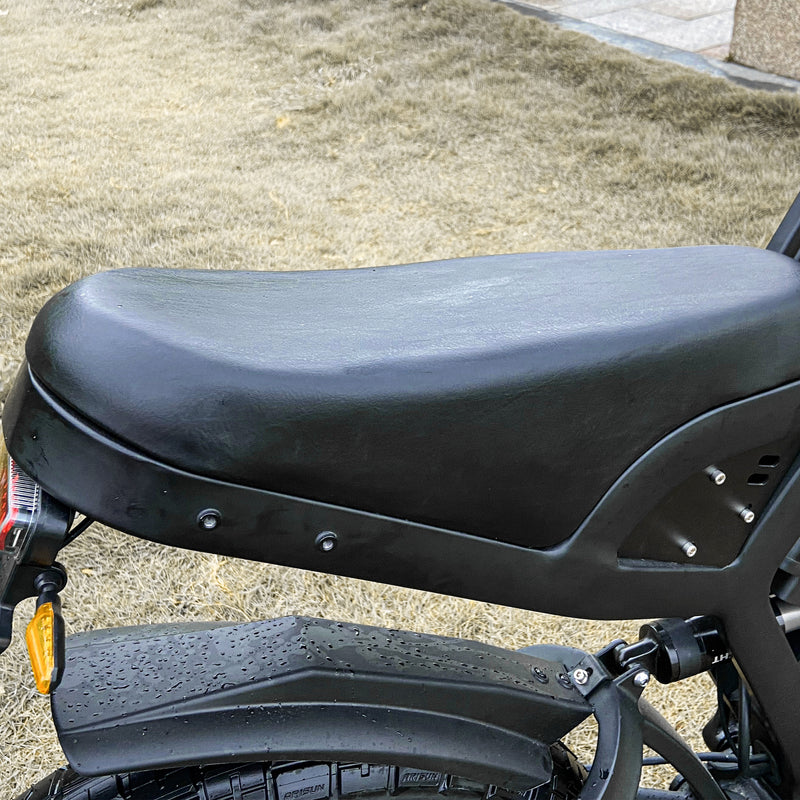

With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
There is a sturdy shelf under the frame that can be used to store items such as water bottles.
GT20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
There is a USB 1AH charging port under the GT20 display, which is convenient for you to charge your mobile phone with low battery when riding outdoors, ensuring your safety.
Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.
With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
There is a sturdy shelf under the frame that can be used to store items such as water bottles.
