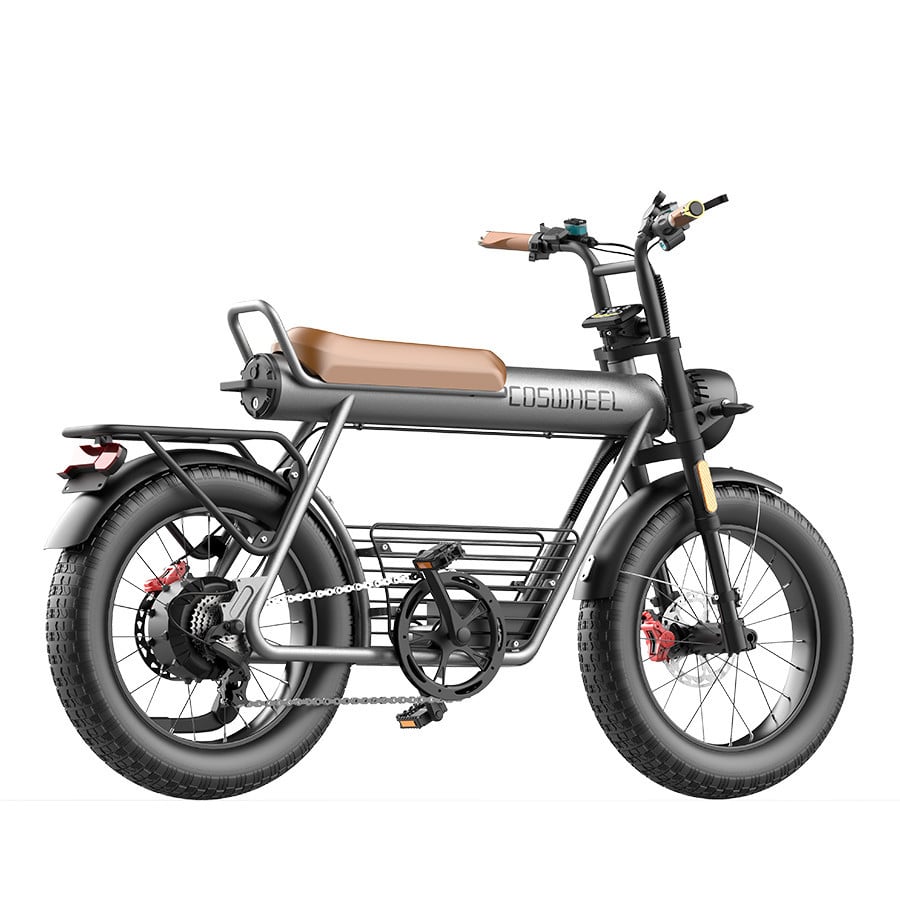

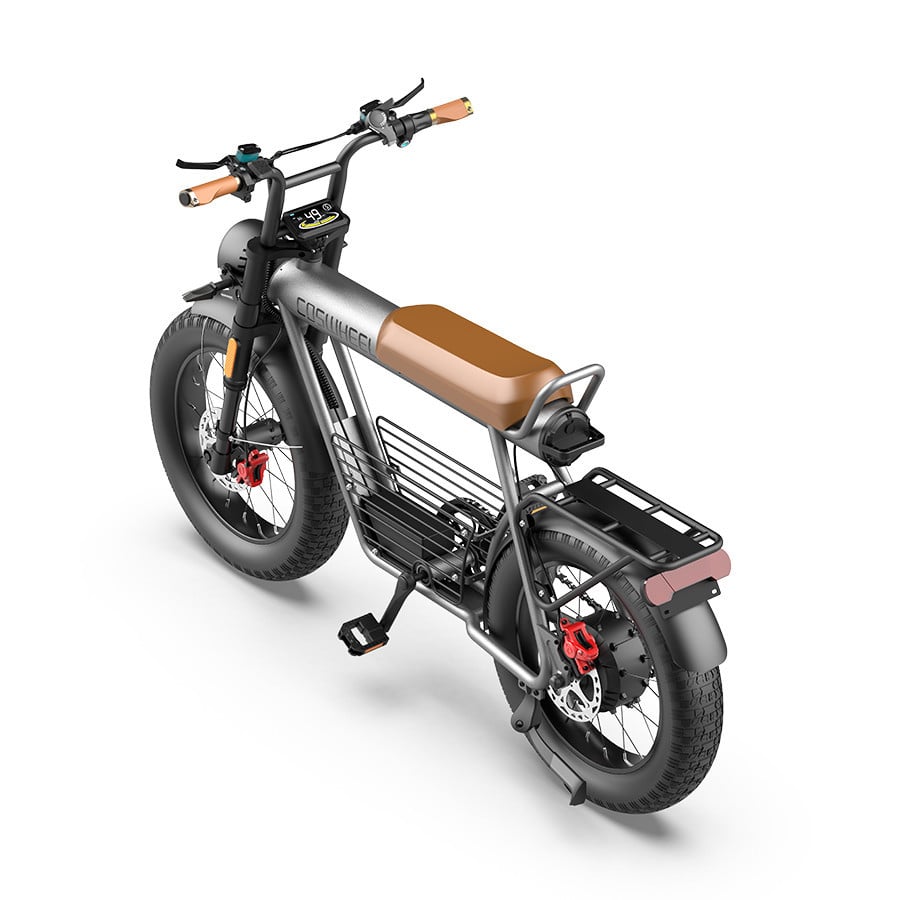

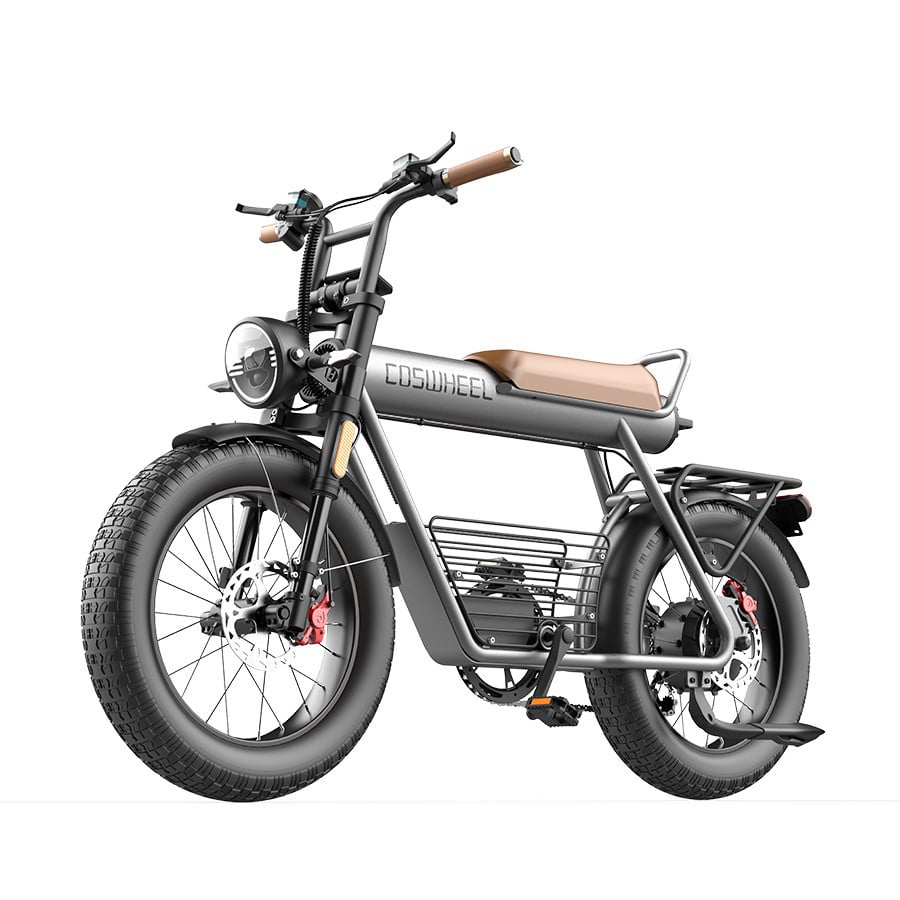

CT20 EBIKE 48V 1000W 15/20/25AH ELECTRIC CITY FAMILY BIKE
Description
CT20 EBIKE LEGALITY
This ebike has passed European CE, EN15194 and American UL2849 certifications, and is equipped with 5-speed electronic transmission, pedal chain Shimano 7-level manual transmission, and can be freely set according to your local regulations.
Why Choose COSWHEEL?
Super73 killer, with the same configuration, better quality and price.
The whole bike is made of aluminum alloy, which is solid, reliable, elegant and at the same time beats other ebikes with iron frames.
All products are independently developed and have appearance patents. With a coswheel ebike, you are unique.
ADVANTAGES OF CT20
1760MM super long body, stronger load capacity, suitable for family travel.
20"*5" all-terrain fat tires to help you conquer all roads.
New upgrade from 750W to 1000W high-speed motor, peak output 1500W.
Front and rear motorcycle level with oil brakes, 180MM brake discs, more secure.
Packing List
Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1/Rear Shelf*1
Service Advantage
We guarantee the authenticity and quality of each product. Once there is any after-sales problem, we will actively cooperate with you to deal with it, and will never shirk or get rid of responsibility. Please rest assured.
We have special personnel to follow up every order. If you have any questions about the order, please contact us immediately, and we will answer you at any time.
Our factory was established in 2015 and has been in the electric bicycle industry for many years. Our boss and design team have graduated from the top design institute in China - Guangzhou Academy of Fine Arts. Therefore, please rest assured that for ebikes, we is very professional.
| Color | gray frame, black wheel |
| Battery | 720/960/1200Wh (15/20/25Ah) |
| Frame Material | full custom hydroformed triple-butted 6061-T6 aluminium alloy |
| Motor | New upgrade from 750W to 1000W high-speed motor, peak output 1500W |
| Max Speed | 45km/h (28mph) |
| Gearbox | Shimano 7-speed drivetrain |
| Tire Size | black off-road tire 20" * 5.0" IA-2149 with AV+lining |
| Range Per Charge | 50-60km, 70-80km, 90-100km |
| Voltage | 48V |
| Foldable | No |
| Charge time | 3.5-8.0H |
| Front Fork | 20" aluminum shoulder shock-absorbing fork, 171mm, Open 135mm |
| Headlight | snow car headlights, 4 core wires, fast-demolition waterproof line |
| Taillight | custom taillights 48V, line length 1300mm single fast disassembly, SM-6A pin terminal |
| Charger | add defense backflow function, voltage 110V-240V, Line length 1.5m |
| Controller | maximum load 28AH current |
| Crank | 1/2 "*3/32"*46T 7-speed ED tooth plate |
| Pedal | aluminum alloy pedal, with reflect-light, axis 9/16 x2 |
| Bent Handlebar | black 31.8*660 |
| Chain | garway, Z7Gy/BR*120 section |
| Brake | 180mm wide and 3mm thick ventilated discs |
| Suspension Travel | 180mm |
| Torque | 80N.m |
| Weight | ≥40KG |
| Brake System | front and rear motorcycle-grade oil cylinder double-piston brakes |
| Max load | 150KG (safty load≤120KG) |
| Size | 180*60*115cm |
| Packing Size | 146*39*86cm |
GT20 Specifications
Performance
- Top Speed: Class 2/3, 28+ Mph (45+Km/h); Off-road Mode +++ (60V)
- Range: 55+miles (88km) in Class-2 throttle-only mode (pure electricity); 100+miles (161km) in Class-1 PAS (pedal assist)
- Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m
- Battery: 60V 27.5Ah Battery (Lithium 18650 Cells)
- Energy: 1650Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
- Throttle: Grip Twist Throttle
Electronics
- Charger: 60V5A Charger
- Charging Time: 3.5-8.0 Hours

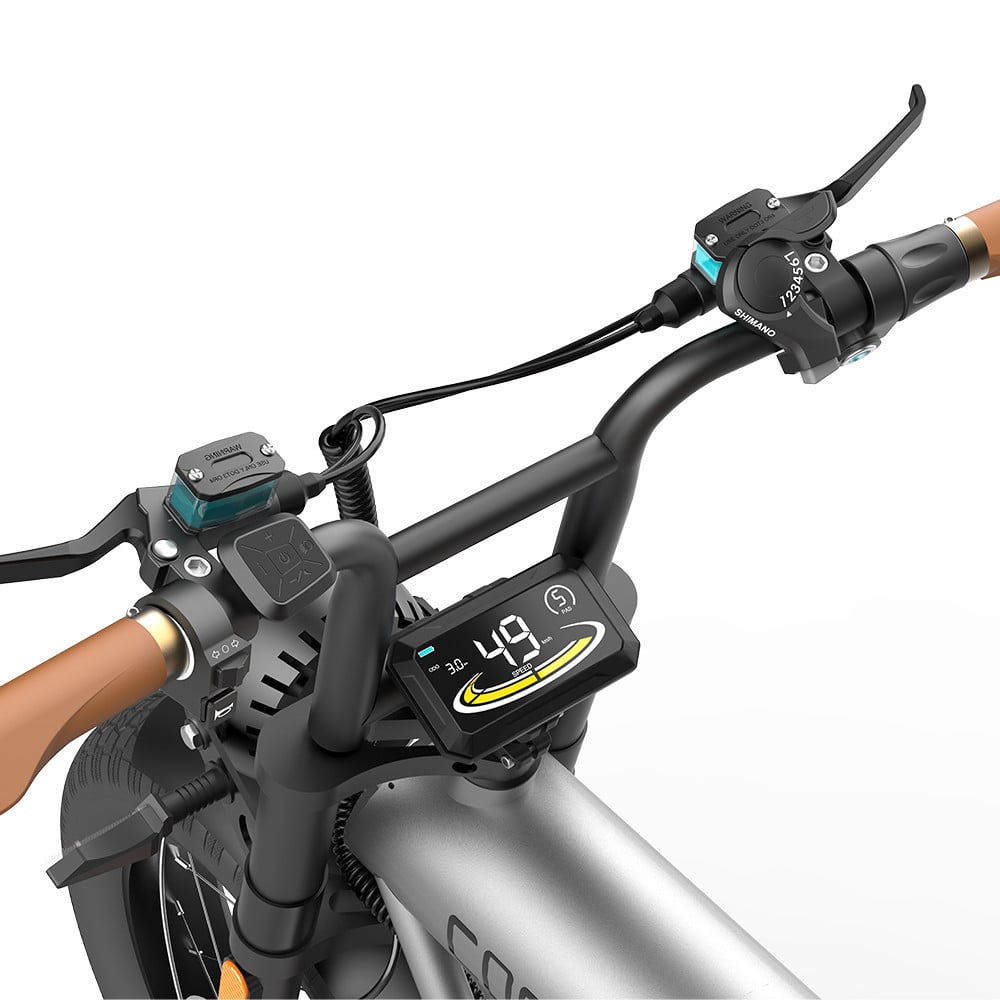

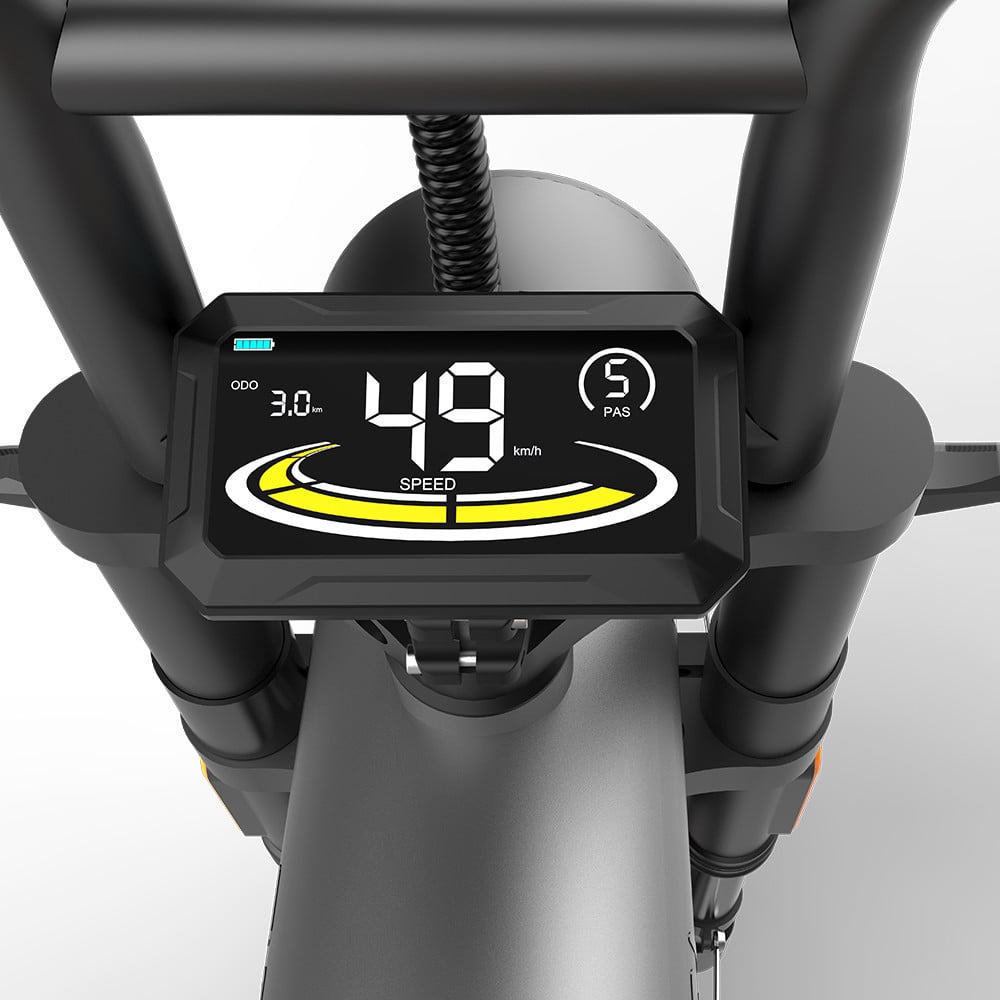

- Display: Easy Read LCD Display
- Controller: 60V 35A

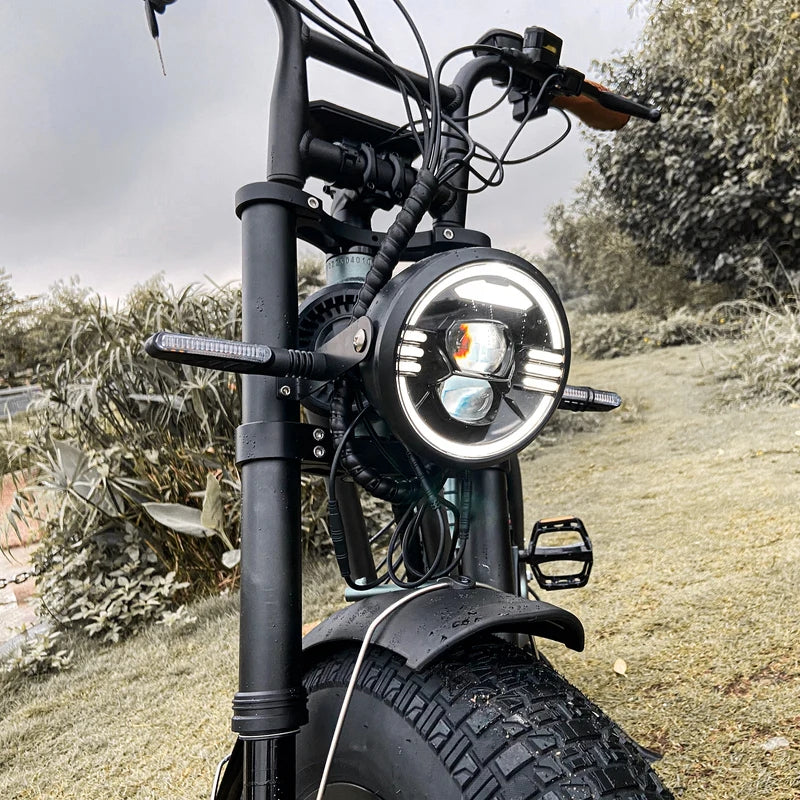

- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Sand Black 31.8*660
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 33.4" (85cm)
- Bike Height: 45.3" (115cm)
- Wheelbase: 45.3" (115cm)
- Handlebar Width: 26.4" (67cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
- Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)
- Top Speed: Class 2/3, 28+ Mph (45+Km/h); Off-road Mode +++ (60V)
- Range: 55+miles (88km) in Class-2 throttle-only mode (pure electricity); 100+miles (161km) in Class-1 PAS (pedal assist)
- Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m
- Battery: 60V 27.5Ah Battery (Lithium 18650 Cells)
- Energy: 1650Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
- Throttle: Grip Twist Throttle
- Charger: 60V5A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 60V 35A

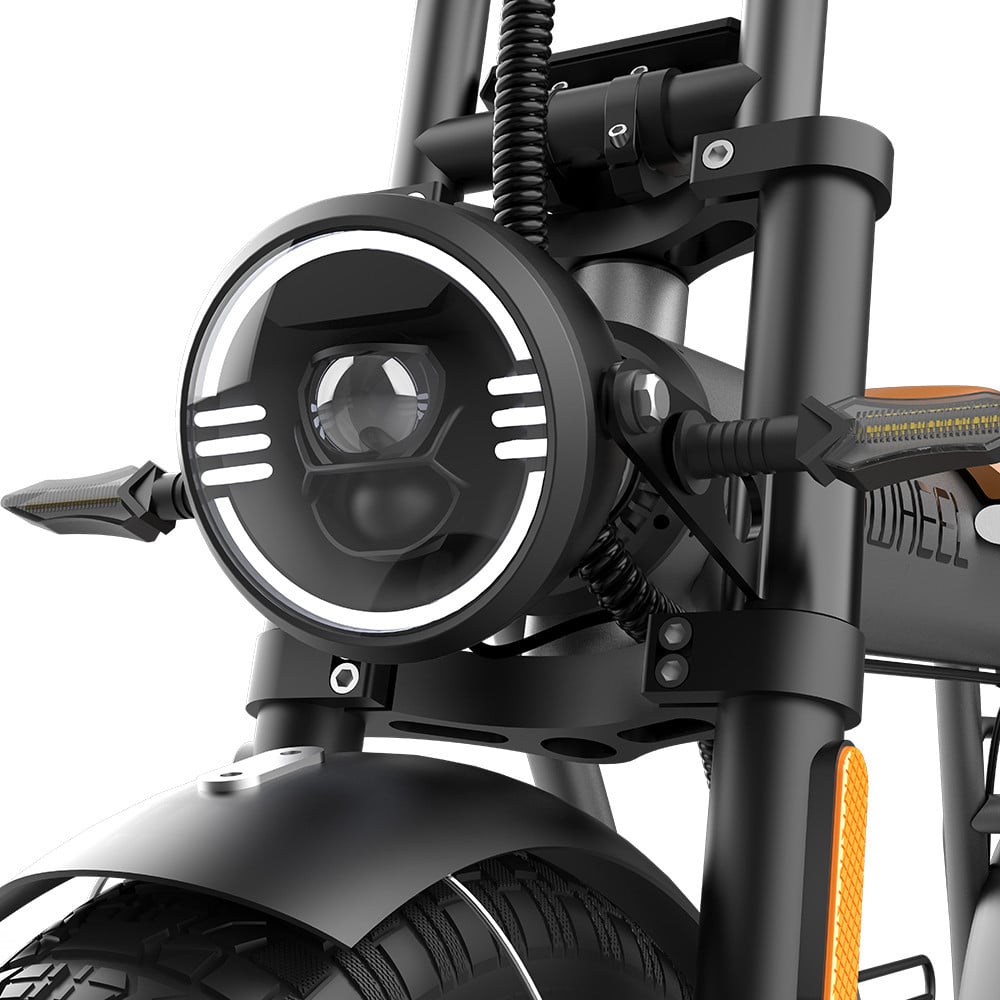

- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Sand Black 31.8*660
- Suitable Height: 5'1" - 6'5"
- Seat Height: 33.4" (85cm)
- Bike Height: 45.3" (115cm)
- Wheelbase: 45.3" (115cm)
- Handlebar Width: 26.4" (67cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
- Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)

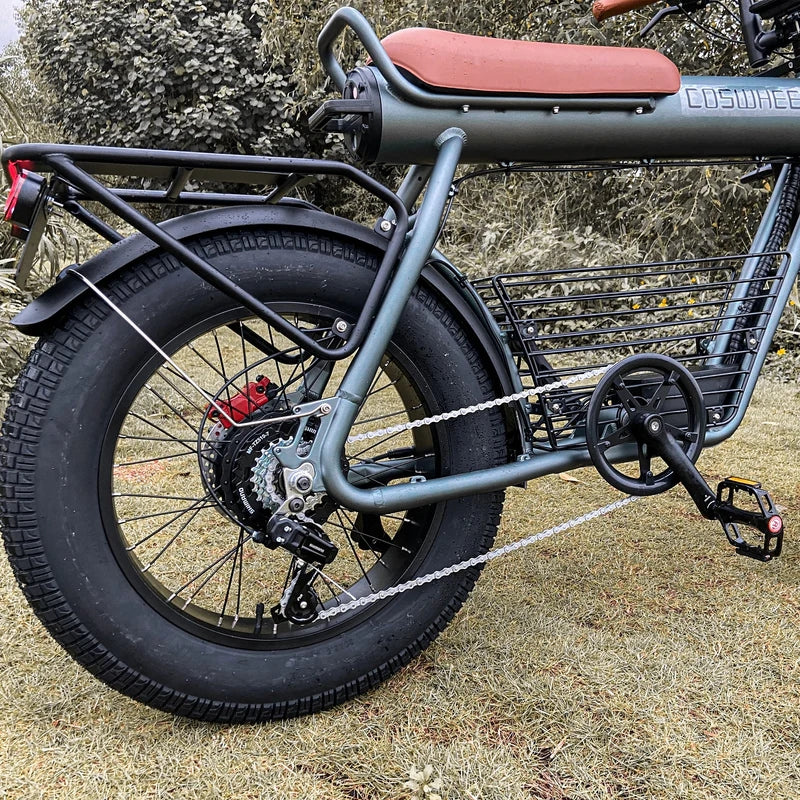

CT20S is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.

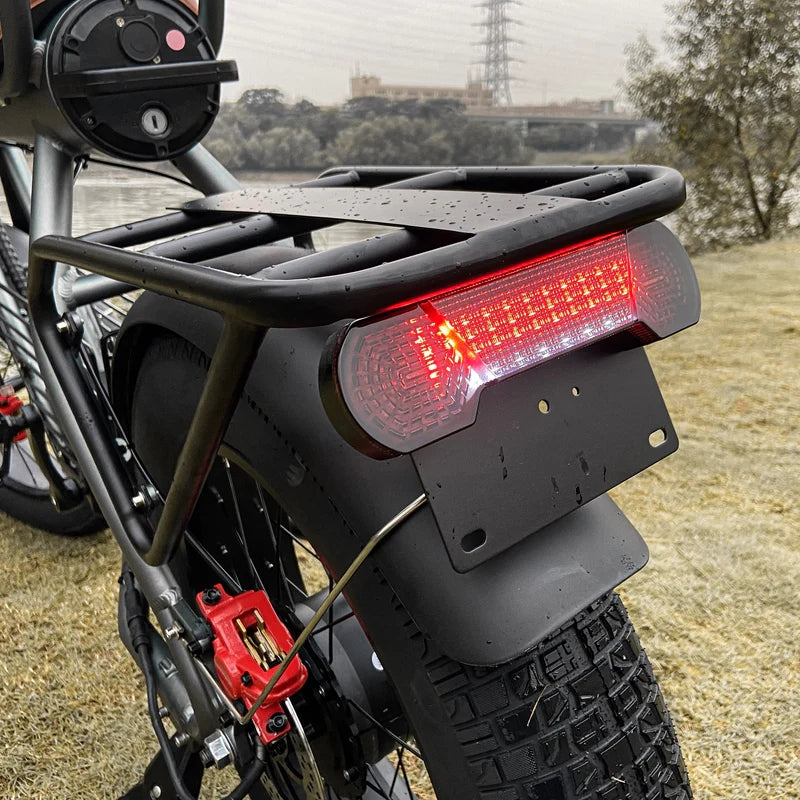

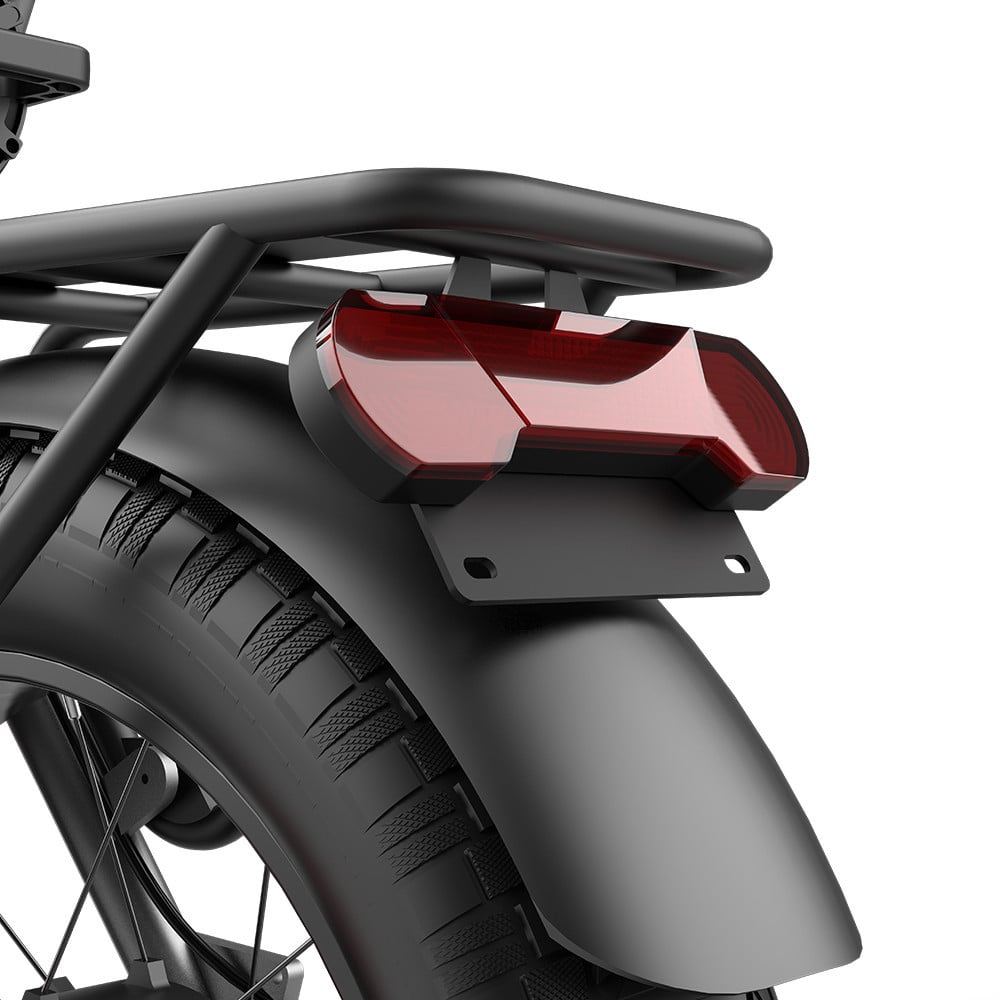

Equipped with double protection fenders, it is sturdy and durable, and the rear taillight LED is mounted on the fenders, making it look more luxurious.

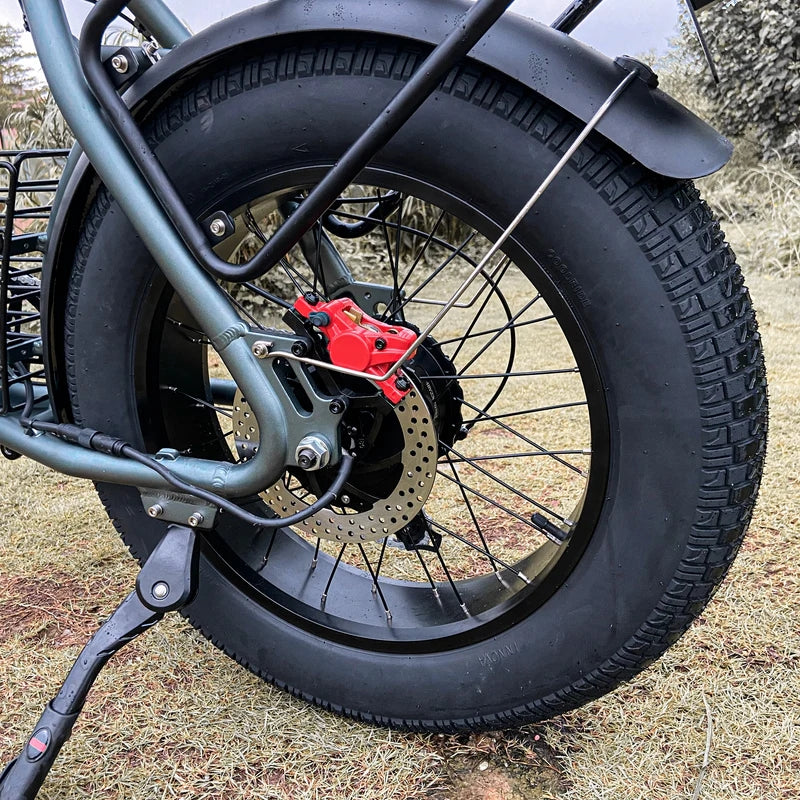

Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.

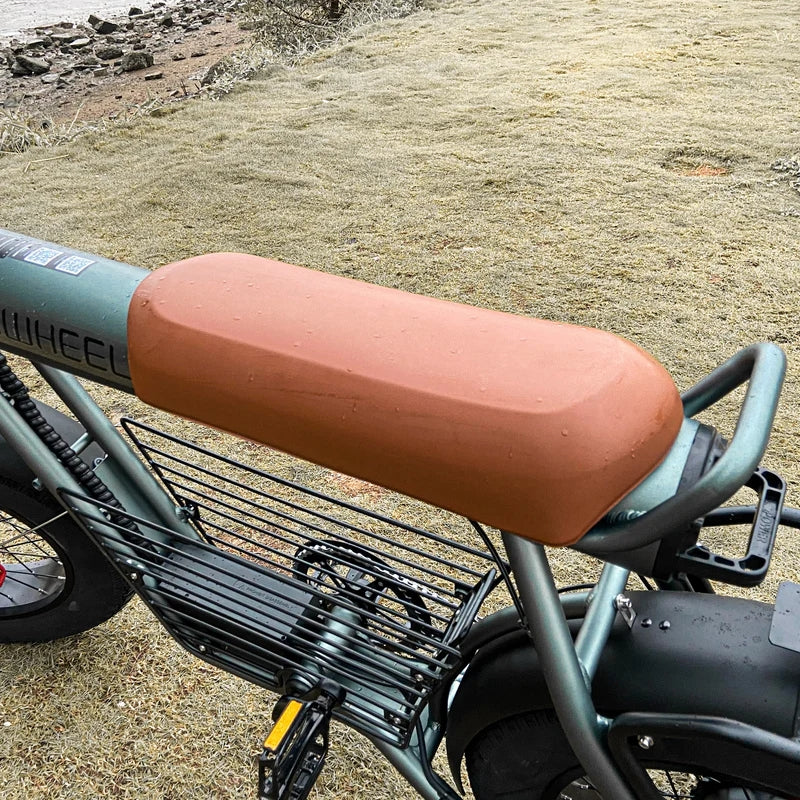

With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
CT20S is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
Equipped with double protection fenders, it is sturdy and durable, and the rear taillight LED is mounted on the fenders, making it look more luxurious.
Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.
With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
