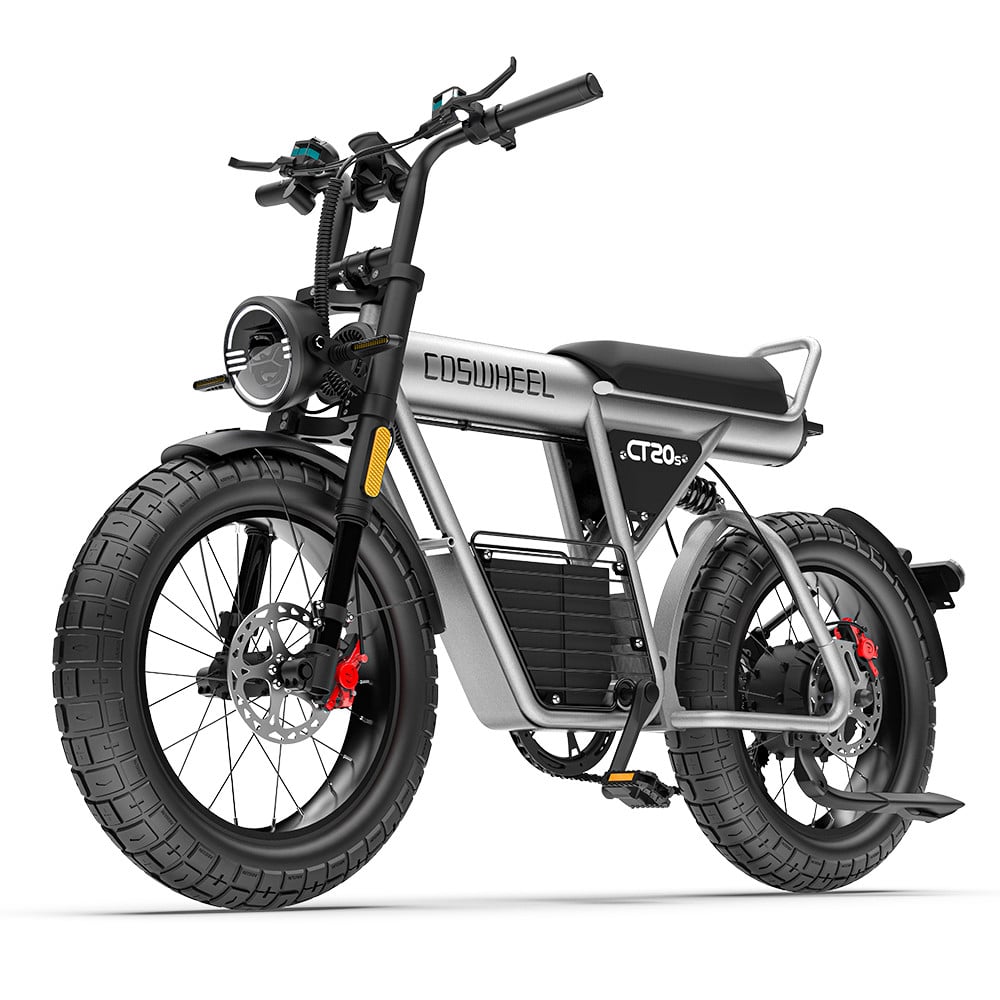

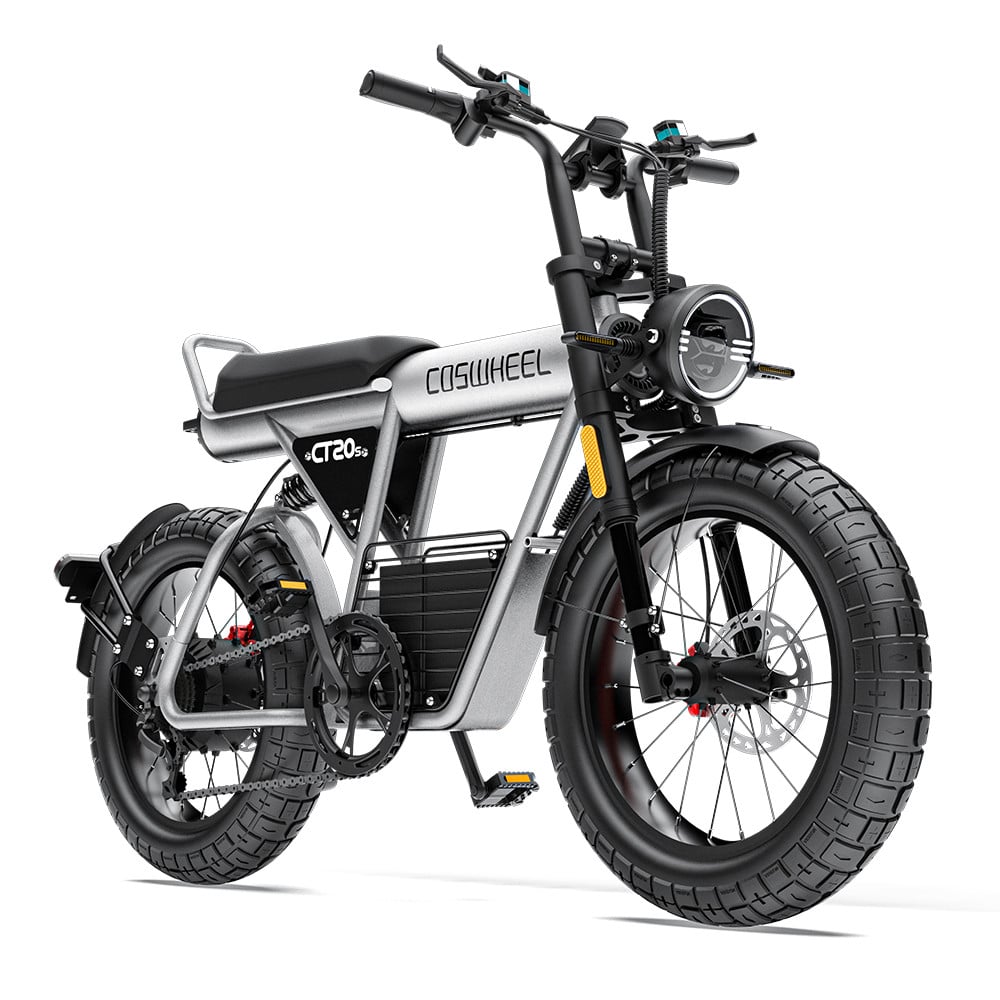

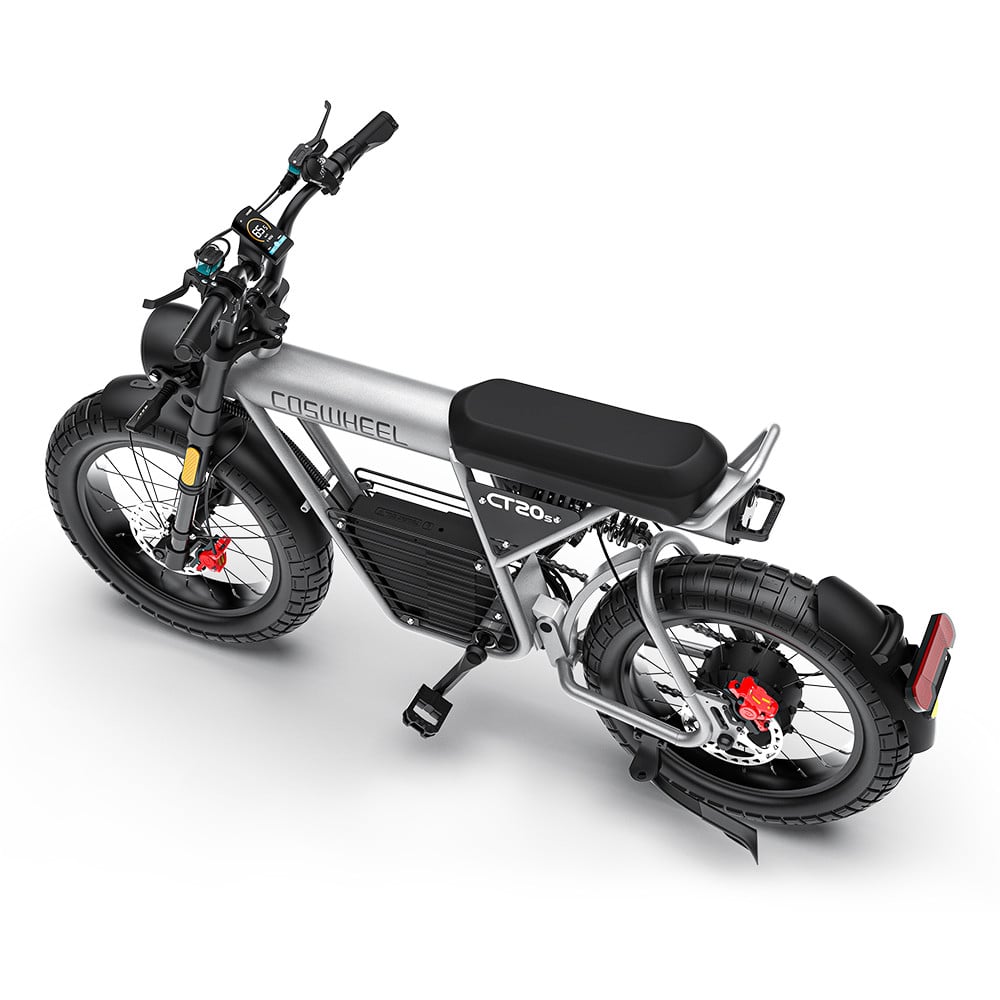

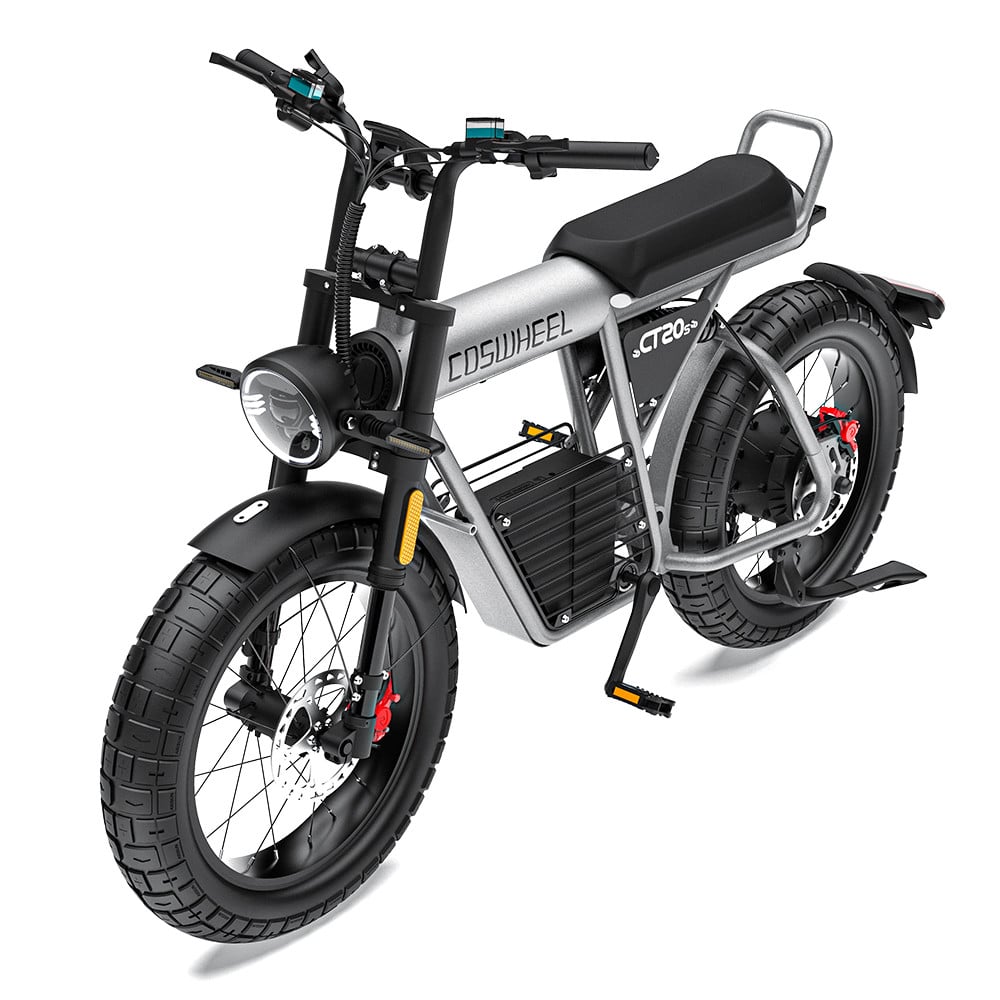

CT20S EBIKE 48V/60V 1500W 25/35AH STRONG POWER ELECTRIC BICYCLE
Description
|
Color |
silver frame, black wheel |
|
Battery |
48V 25/35AH and 60V 27.5AH |
|
Battery Energy |
1200/1680Wh and 1650Wh |
|
Frame Material |
full custom hydroformed triple-butted 6061-T6 aluminium alloy |
|
Motor |
1500W rear high-speed motor（Peak output 2000w） |
|
Max Speed |
65km/h (60V battery), 45km/h (48V battery) |
|
Gearbox |
Shimano 7-speed drivetrain |
|
Tire Size |
Chaoyang black all terrain tire 20" × 5.0"/A820/60TPI |
|
Range Per Charge |
80-100km, 110-120km, 90-100km |
|
Voltage |
48V/60V |
|
Foldable |
No |
|
Charge time |
7.0-12.0H |
|
Front Fork |
20"*5.0" all-aluminum double-shoulder snow shock-absorbing inverted fork |
|

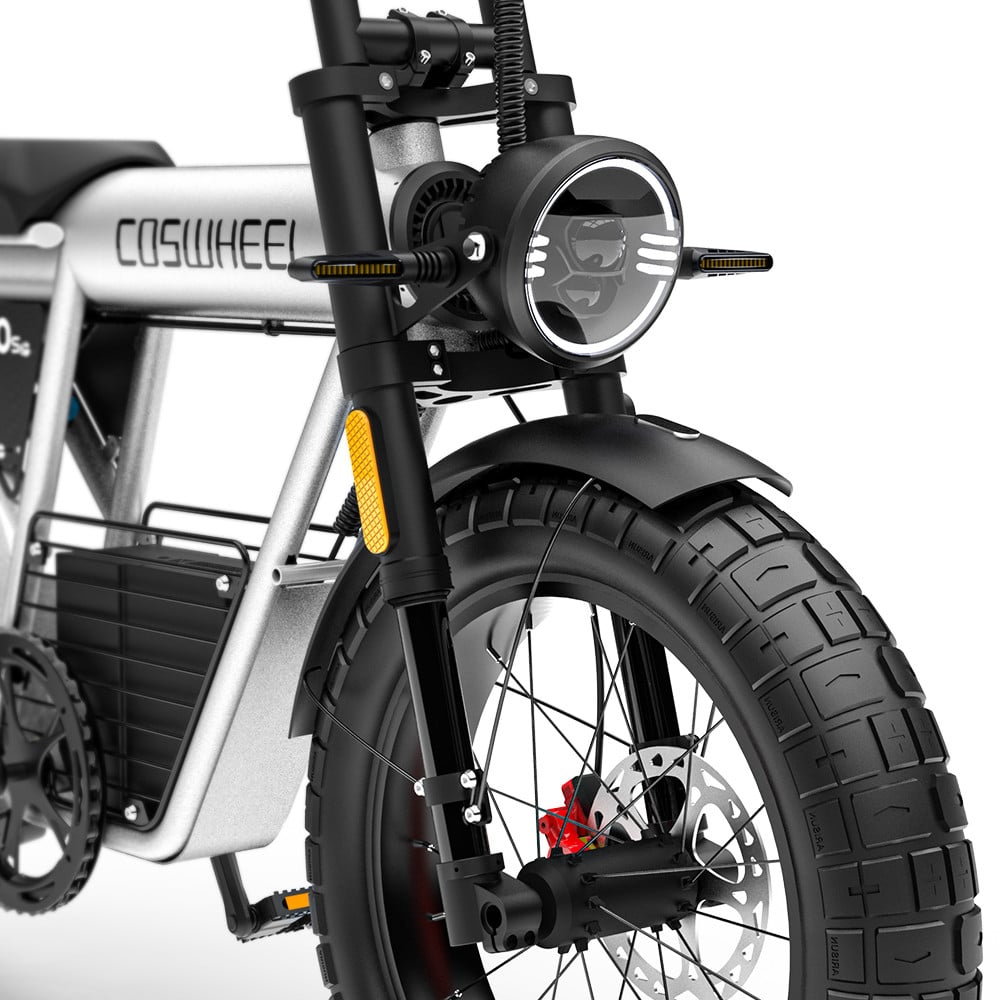

Headlight |
snow car headlights, 4 core wires, fast-demolition waterproof line |
|
Turn Signal |
front and rear LED turn signals |
|
Charger |
add defense backflow function, voltage 110V-240V |
|
Controller |
maximum load 35AH current |
|
Crank |
1/2 "*3/32"*46T 7-speed ED tooth plate |
|
Pedal |
aluminum alloy pedal, with reflect-light, axis 9/16 x2 |
|
Split Handlebar |
Sand black 31.8*660 |
|
Chain |
7-speed anti-rust, 1/2" * 3/32" |
|
Brake Disc |
180mm diameter, 3mm thick ventilated brake disc |
|
Brake System |
motorcycle brake with oil cylinder |
|
Shock |
djustable damping, hole center 230mm, 350 pounds, black |
|
Suspension Travel |
front 120mm, rear 180mm |
|
Suspension |
front and rear suspension |
|
Torque |
120N.m |
|
Weight |
≥45KG |
|
Max load |
200KG (safty load≤150KG) |
|
Size |
180*60*115cm |
|
Packing Size |
146*39*86cm |
This ebike has passed European CE, EN15194 and American UL2849 certifications, and is equipped with 5-speed electronic transmission, pedal chain Shimano 7-level manual transmission, and can be freely set according to your local regulations.
Why Choose COSWHEEL?
Super73 killer, with the same configuration, better quality and price.
The whole bike is made of aluminum alloy, which is solid, reliable, elegant and at the same time beats other ebikes with iron frames.
All products are independently developed and have appearance patents. With a coswheel ebike, you are unique.
CHARACTERISTICS OF CT20S
60V 1500W super power brushless motor, peak output 2000W.
120N.m super torque, easy to climb up a 35-degree slope.

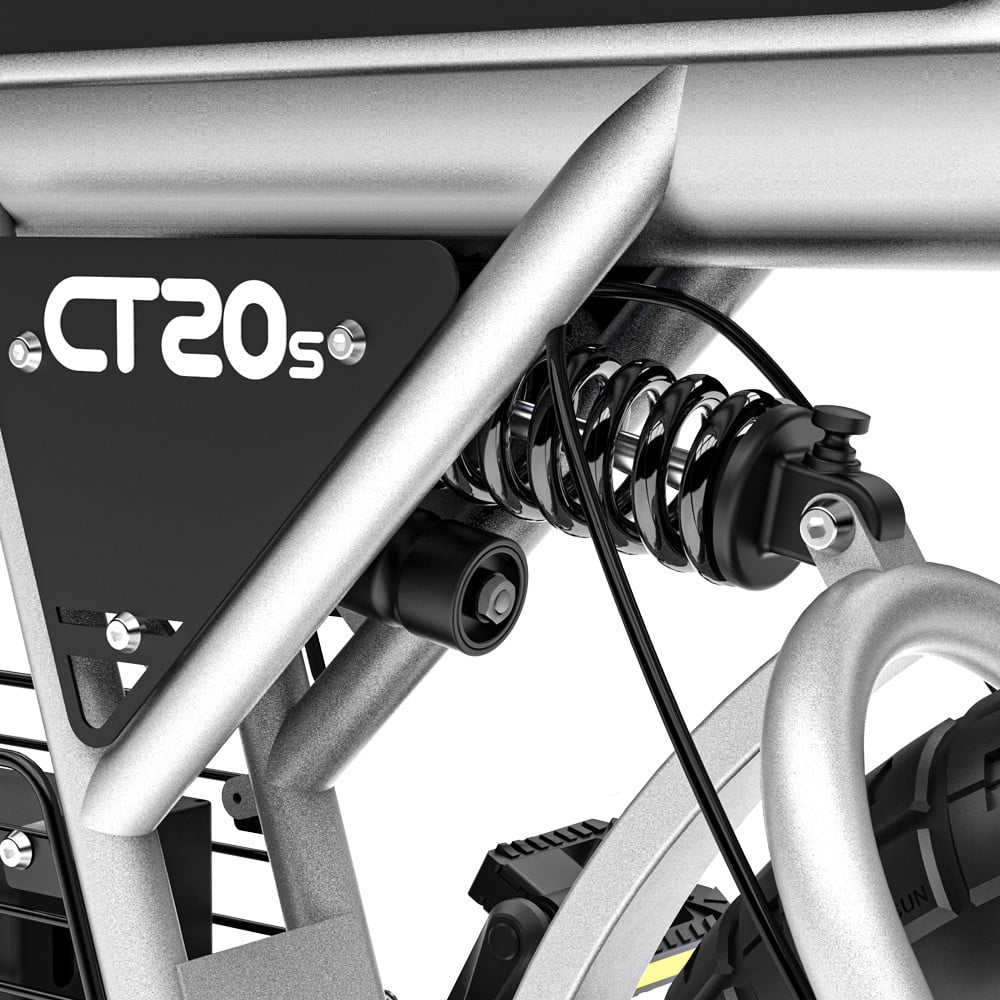

Adjustable rear shock, 350 lbs, high quality ride.
Equipped with an APP matching with IOS, it is easy to locate the position of CT20S
PACKING LIST
Ebike*1/Fender*2/Charger*1/Manual*1/Tool Bag*1
CT20S Specifications
Performance
- Top Speed: Class 2/3, 28+ Mph (45+Km/h); Off-road Mode +++ (60V)
- Range: 55+miles (88km) in Class-2 throttle-only mode (pure electricity); 100+miles (161km) in Class-1 PAS (pedal assist)
- Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m

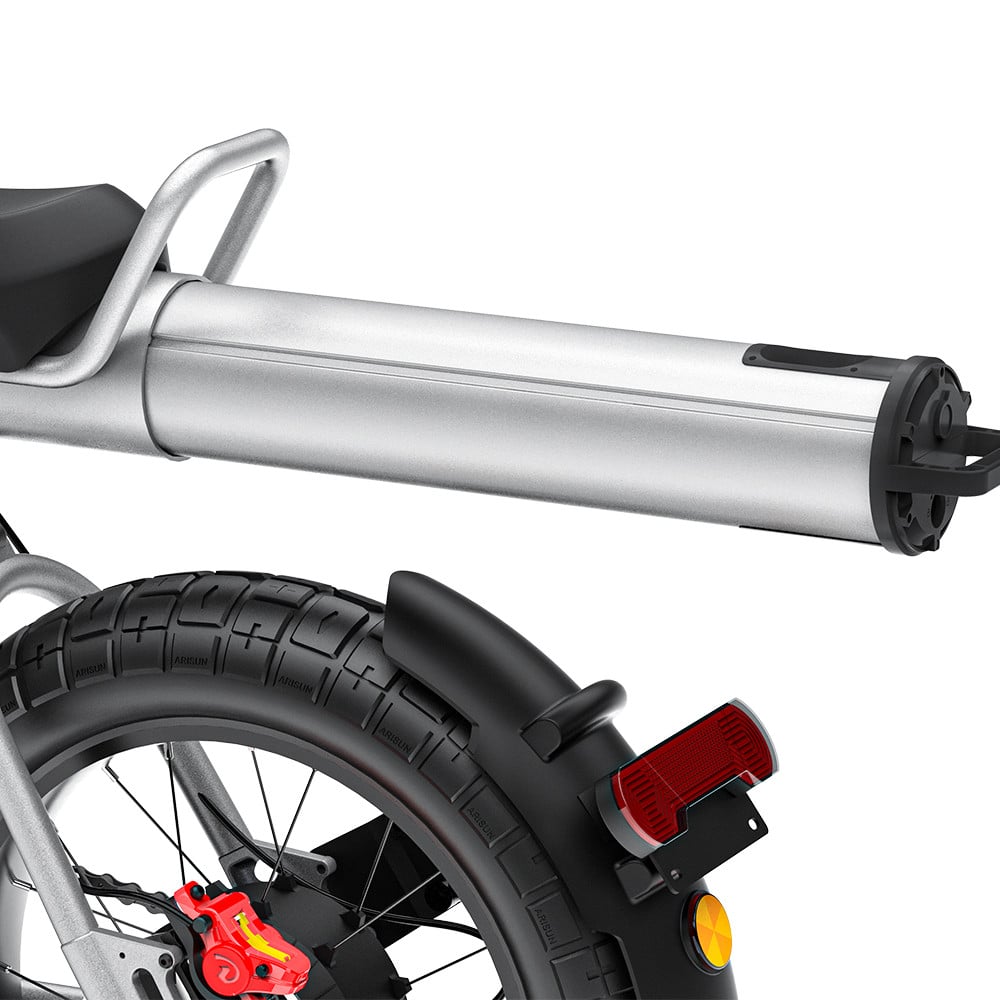

- Battery: 60V 27.5Ah Battery (Lithium 18650 Cells)
- Energy: 1650Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining

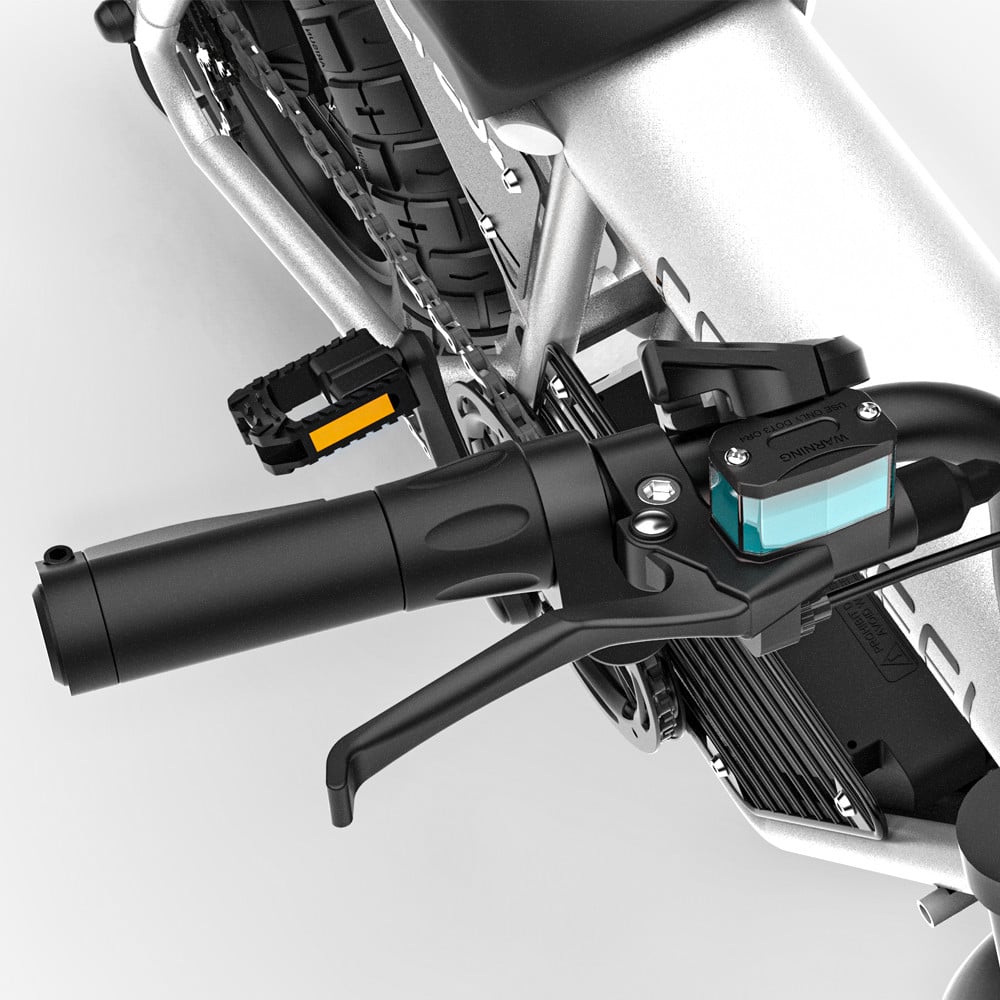

- Throttle: Grip Twist Throttle
Electronics
- Charger: 60V5A Charger
- Charging Time: 3.5-8.0 Hours

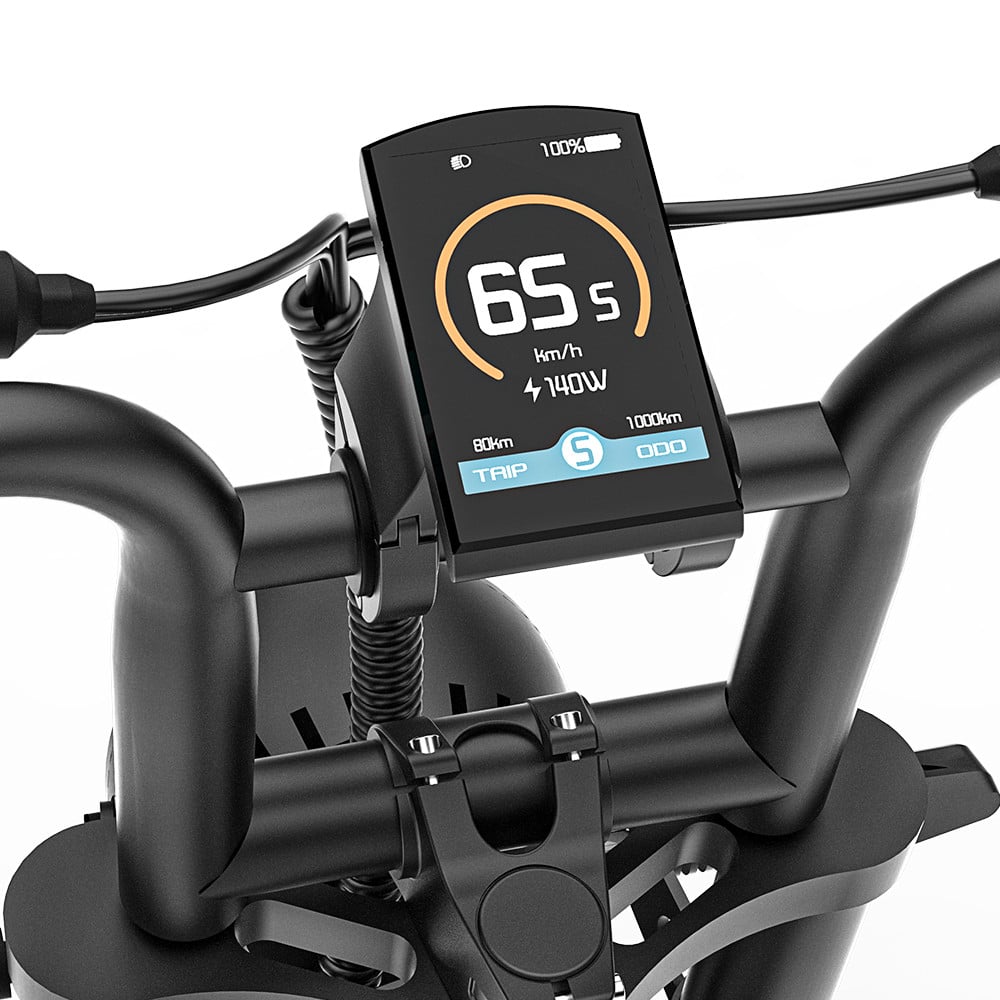

- Display: Easy Read LCD Display
- Controller: 60V 35A

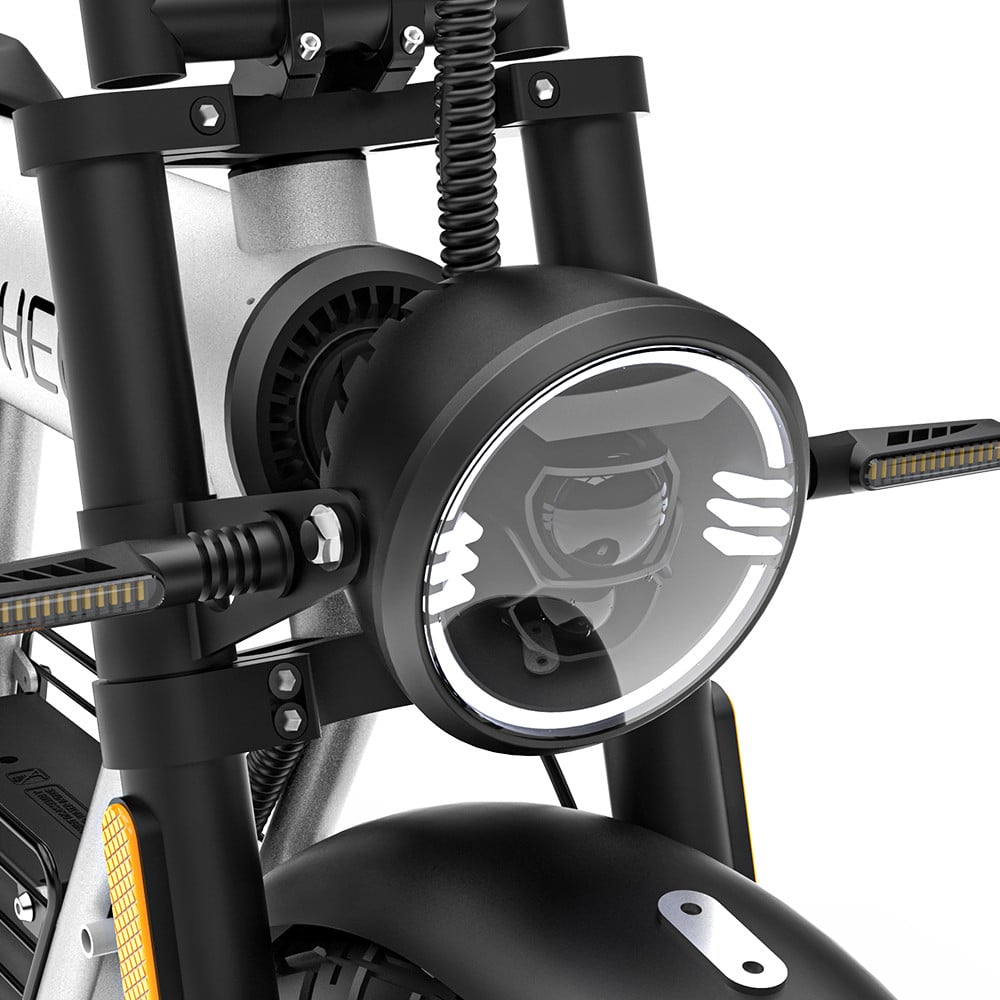

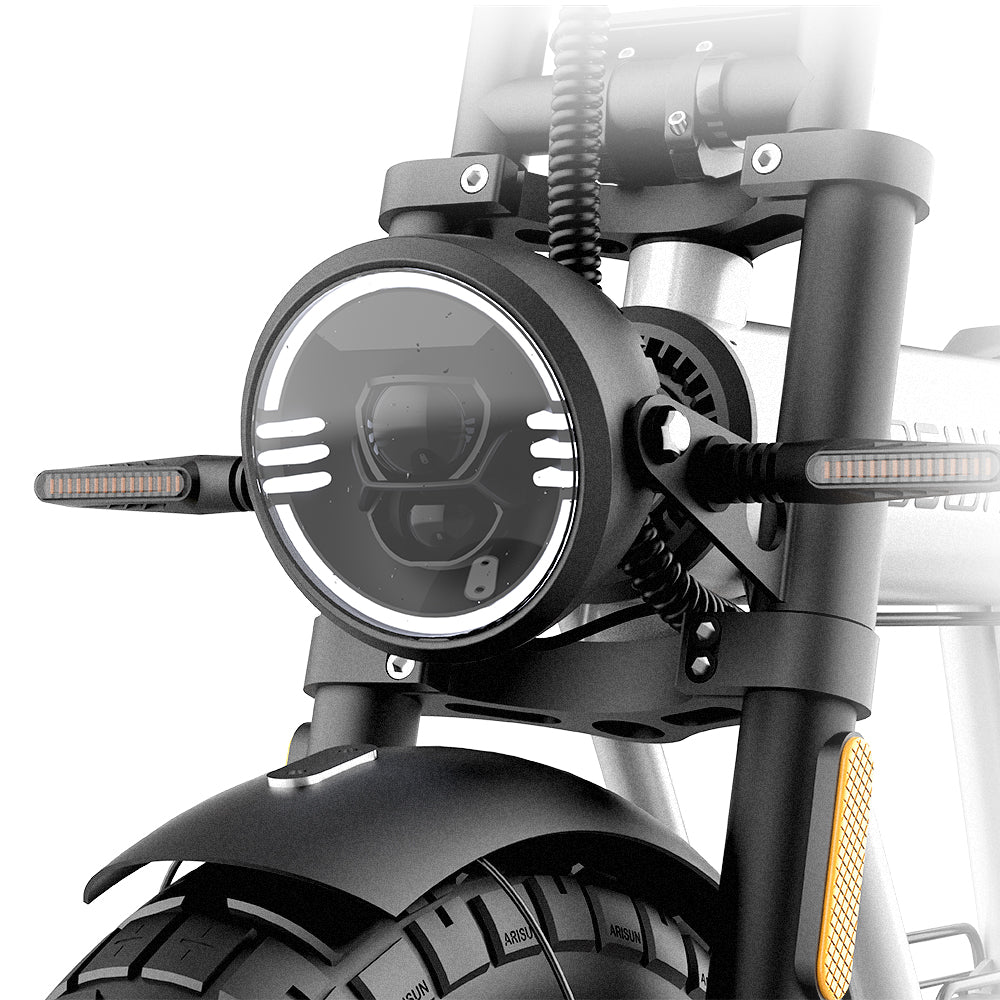

- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Sand Black 31.8*660
Geometry
- Suitable Height: 5'1" - 6'5"
- Seat Height: 33.4" (85cm)
- Bike Height: 45.3" (115cm)
- Wheelbase: 45.3" (115cm)
- Handlebar Width: 26.4" (67cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
- Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)
- Top Speed: Class 2/3, 28+ Mph (45+Km/h); Off-road Mode +++ (60V)
- Range: 55+miles (88km) in Class-2 throttle-only mode (pure electricity); 100+miles (161km) in Class-1 PAS (pedal assist)
- Motor: 60V Peak 2000W (Rated 1500W) Brushless Rear Hub Motor 120N.m
- Battery: 60V 27.5Ah Battery (Lithium 18650 Cells)
- Energy: 1650Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: Off-road Tire 20" * 5.0" IA-2149 with AV+Lining
- Throttle: Grip Twist Throttle
- Charger: 60V5A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 60V 35A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Sand Black 31.8*660
- Suitable Height: 5'1" - 6'5"
- Seat Height: 33.4" (85cm)
- Bike Height: 45.3" (115cm)
- Wheelbase: 45.3" (115cm)
- Handlebar Width: 26.4" (67cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 26.4" *45.3" (180*67*115cm)
- Package Size: 59.4" * 14.2" * 35.4" (151*36*90cm)

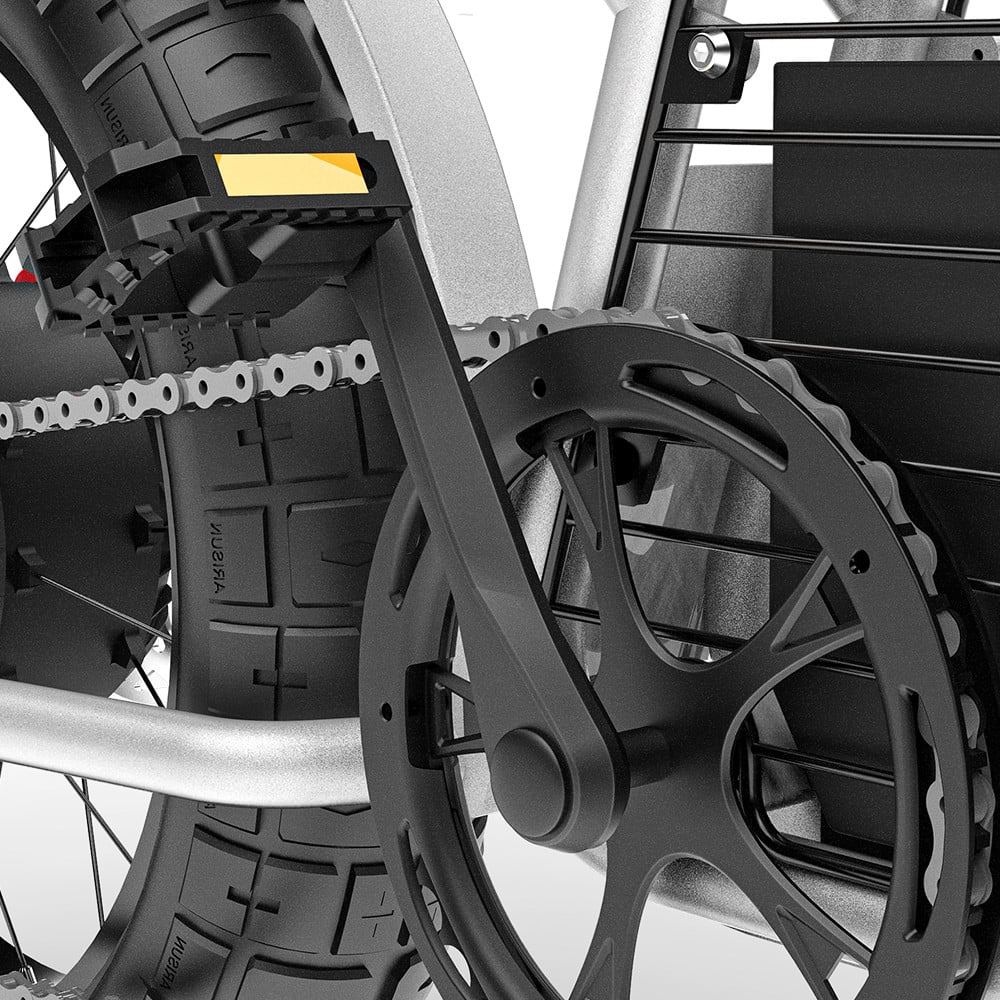

CT20S is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.

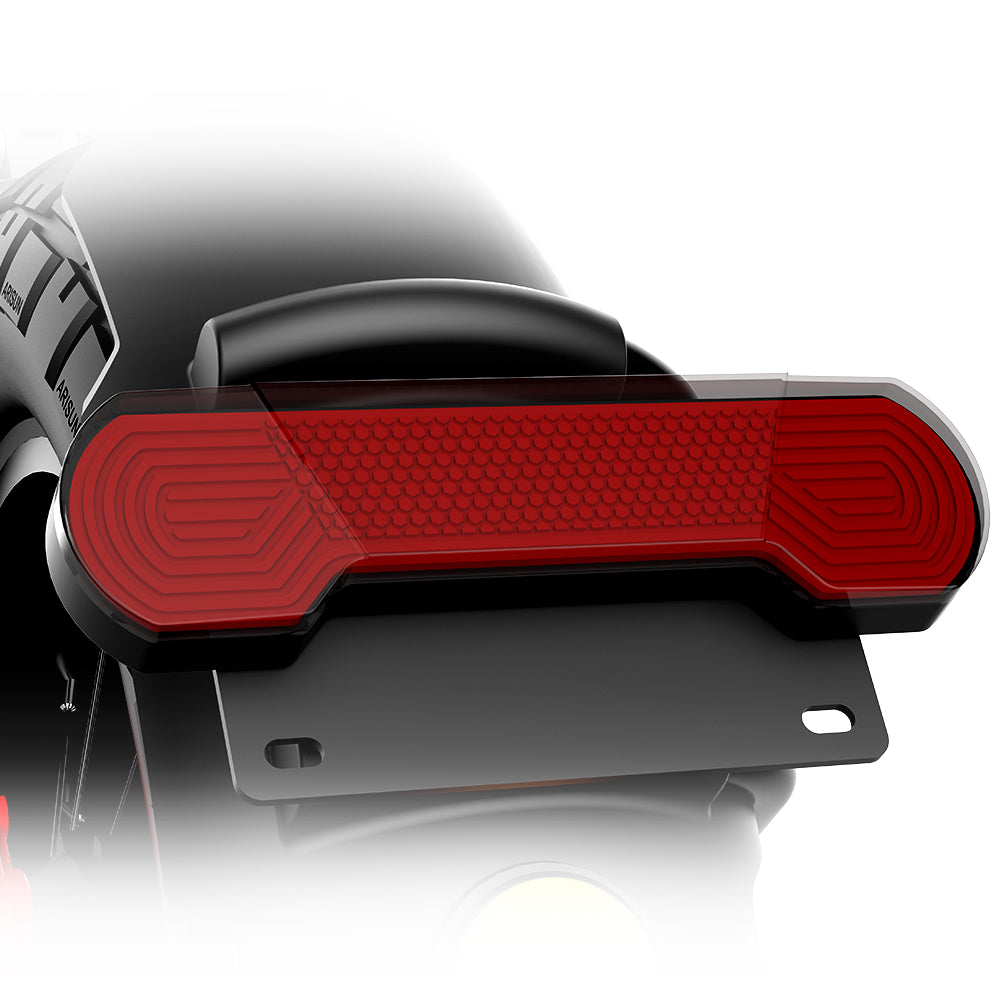

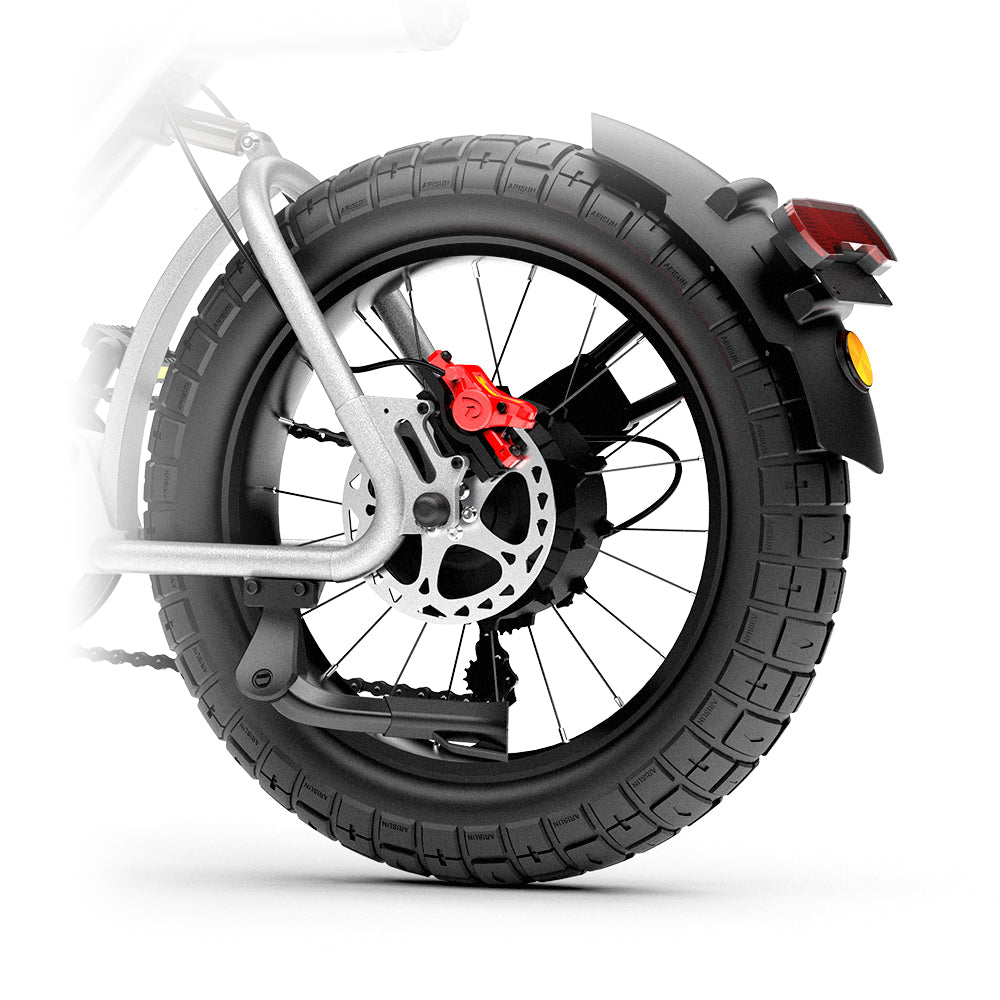

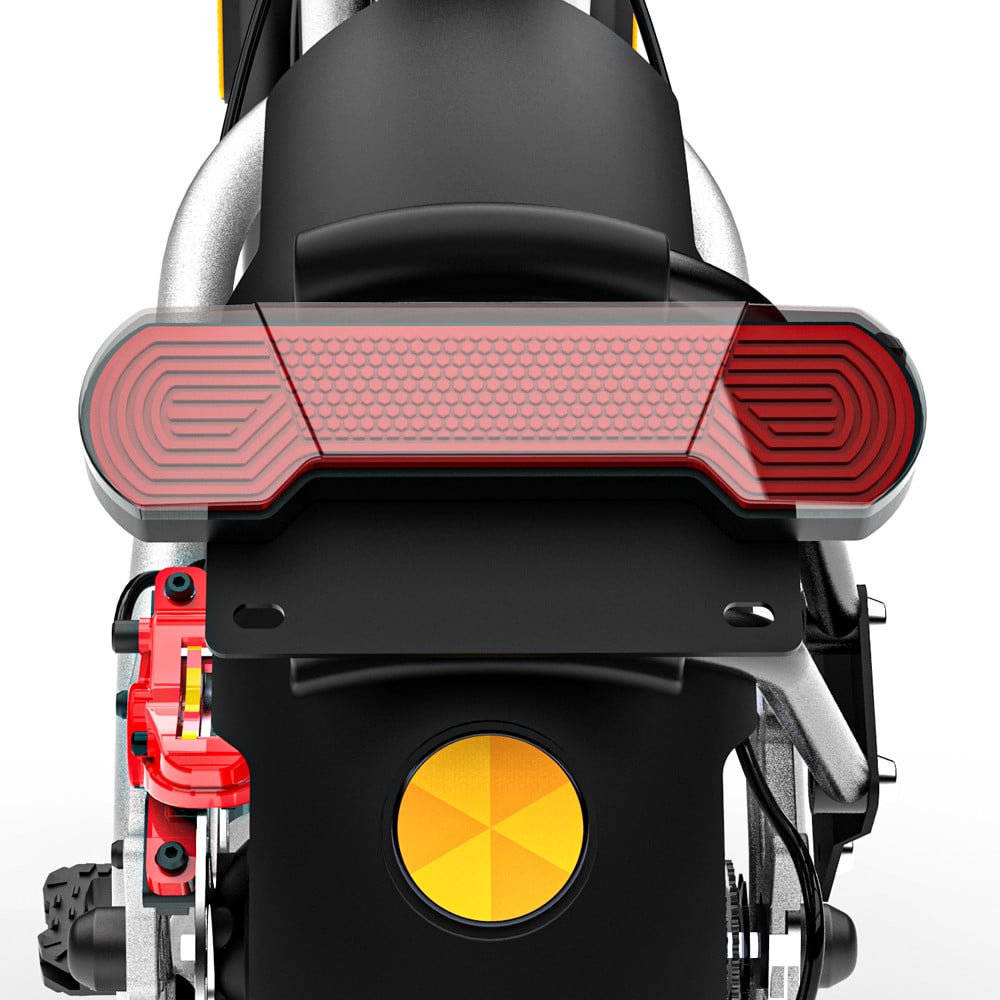

Equipped with double protection fenders, it is sturdy and durable, and the rear taillight LED is mounted on the fenders, making it look more luxurious.

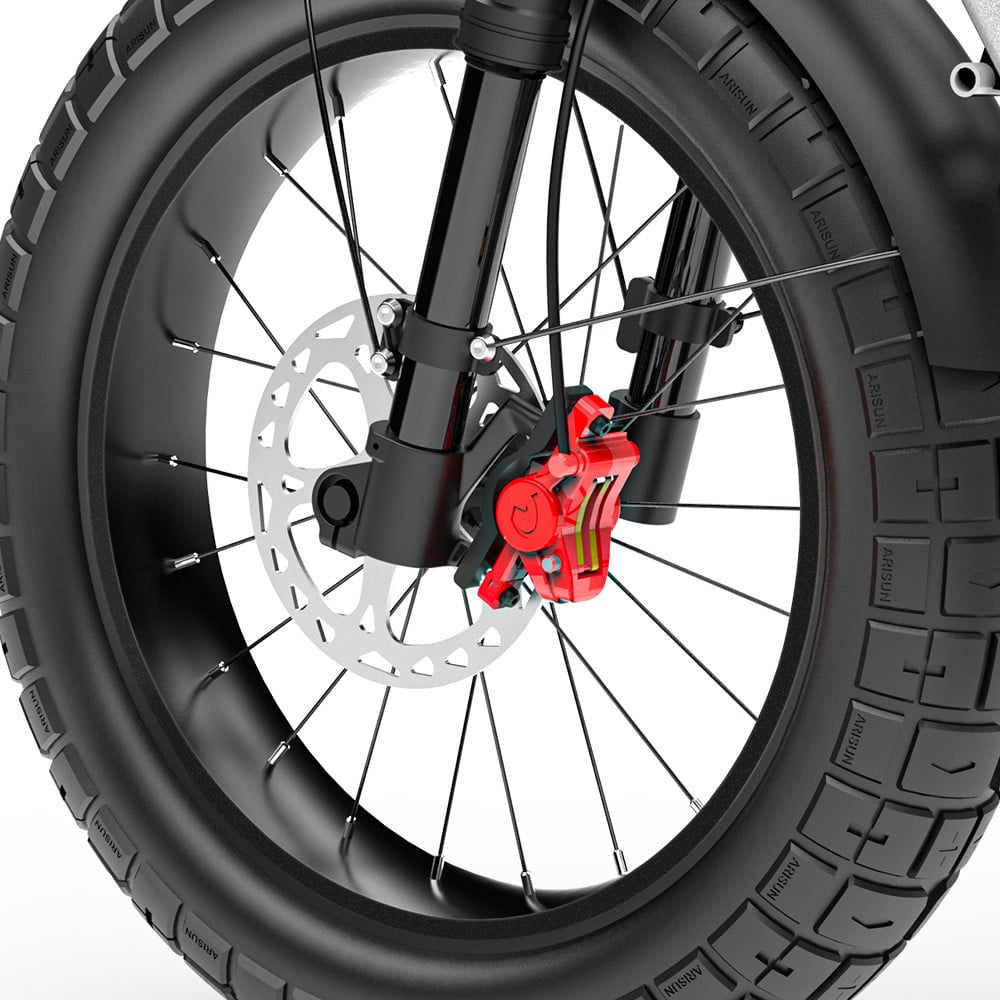

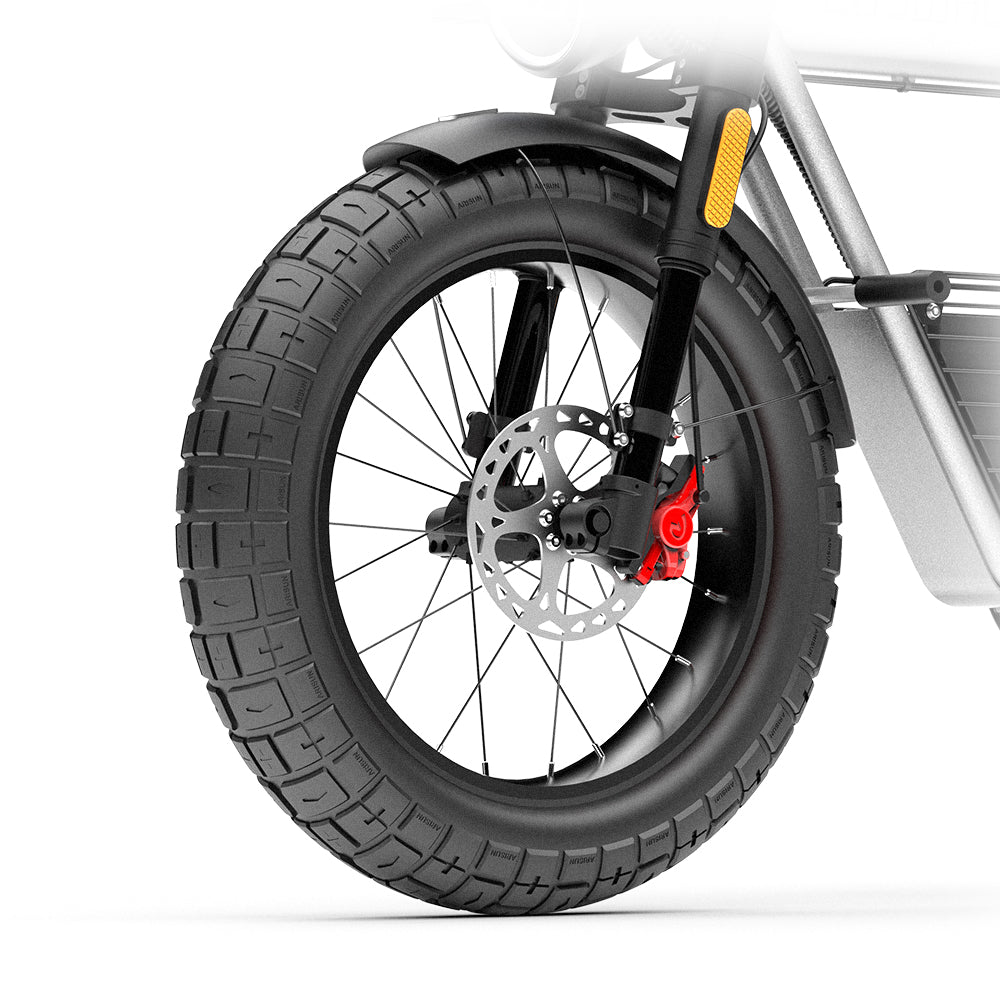

Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.

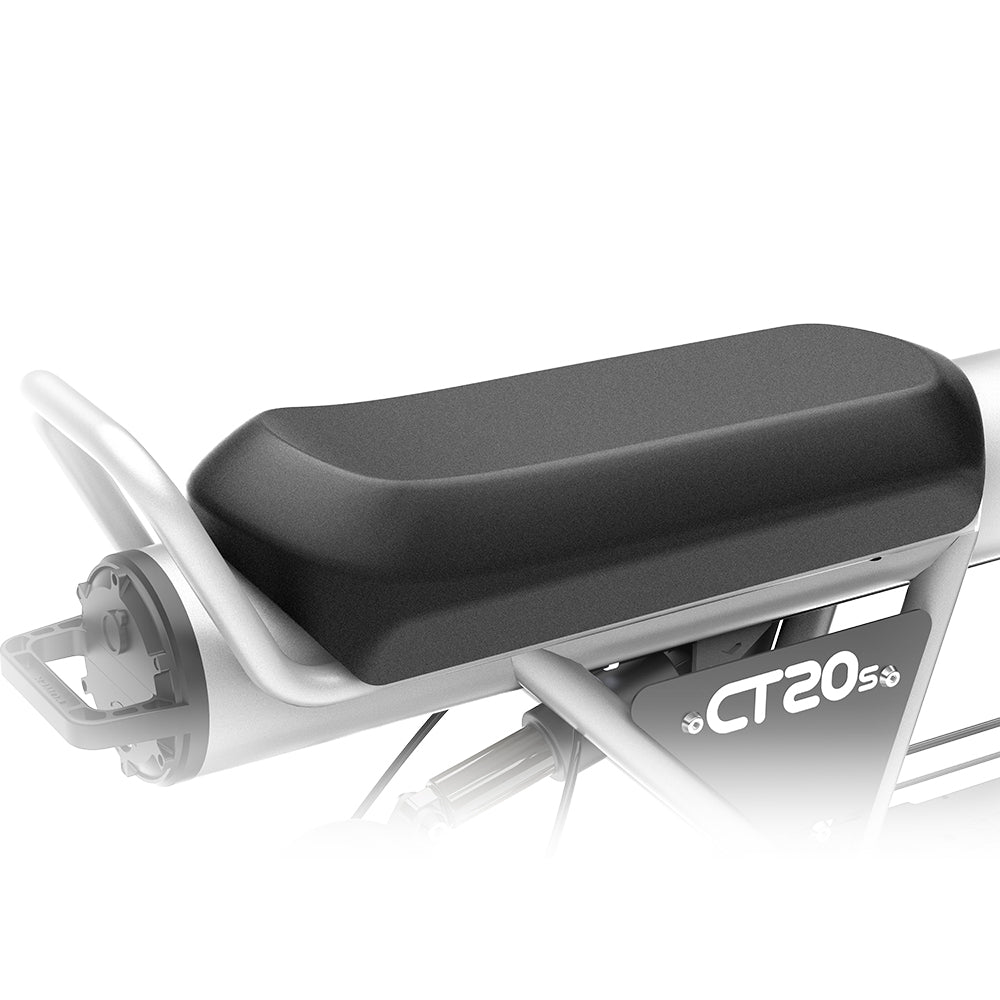

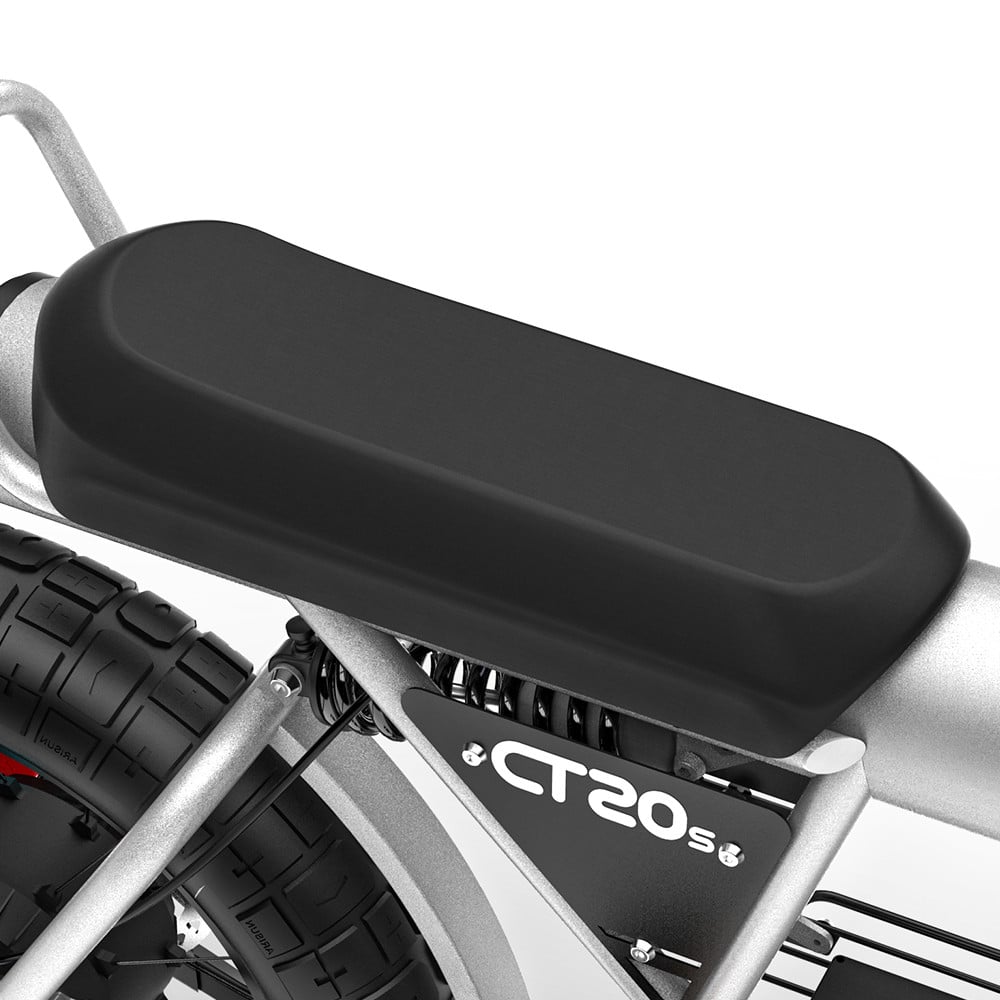

With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
CT20S is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
Equipped with double protection fenders, it is sturdy and durable, and the rear taillight LED is mounted on the fenders, making it look more luxurious.
Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.
With soft and thick leather seat, make your ride more comfortable.
Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
