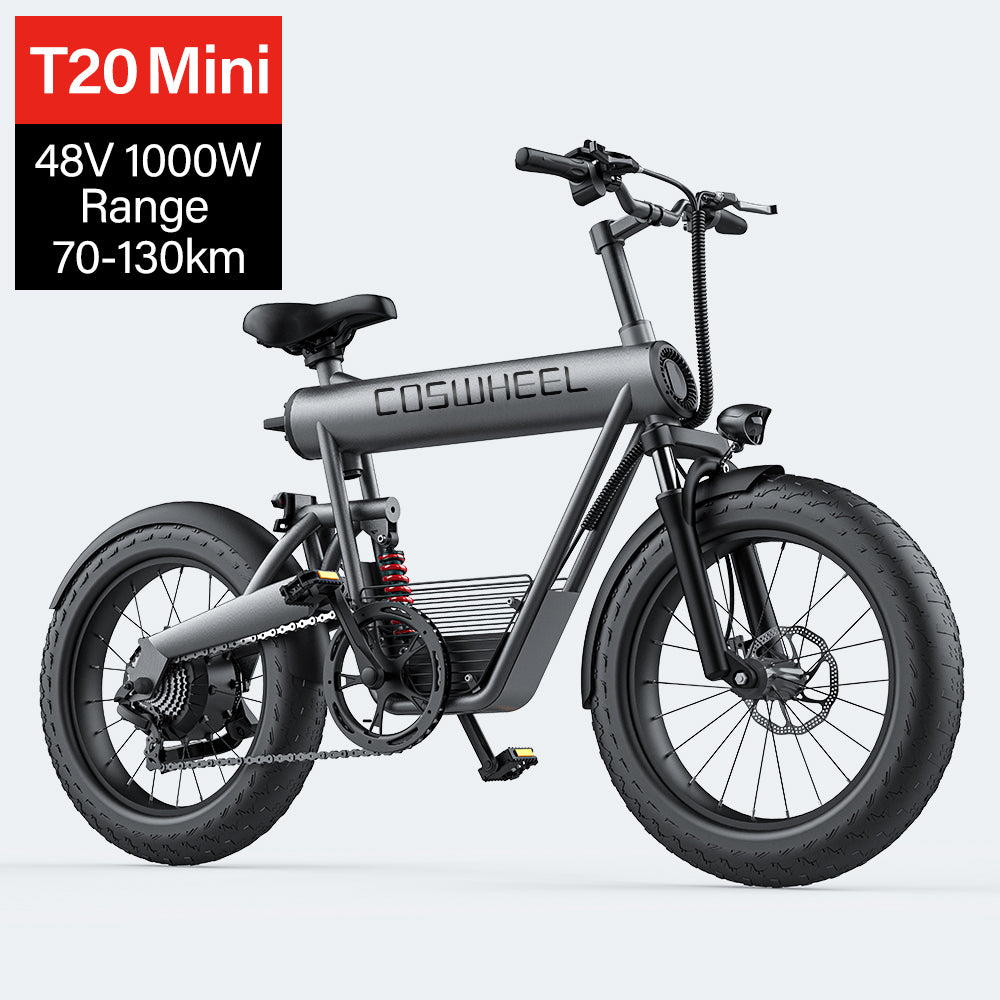

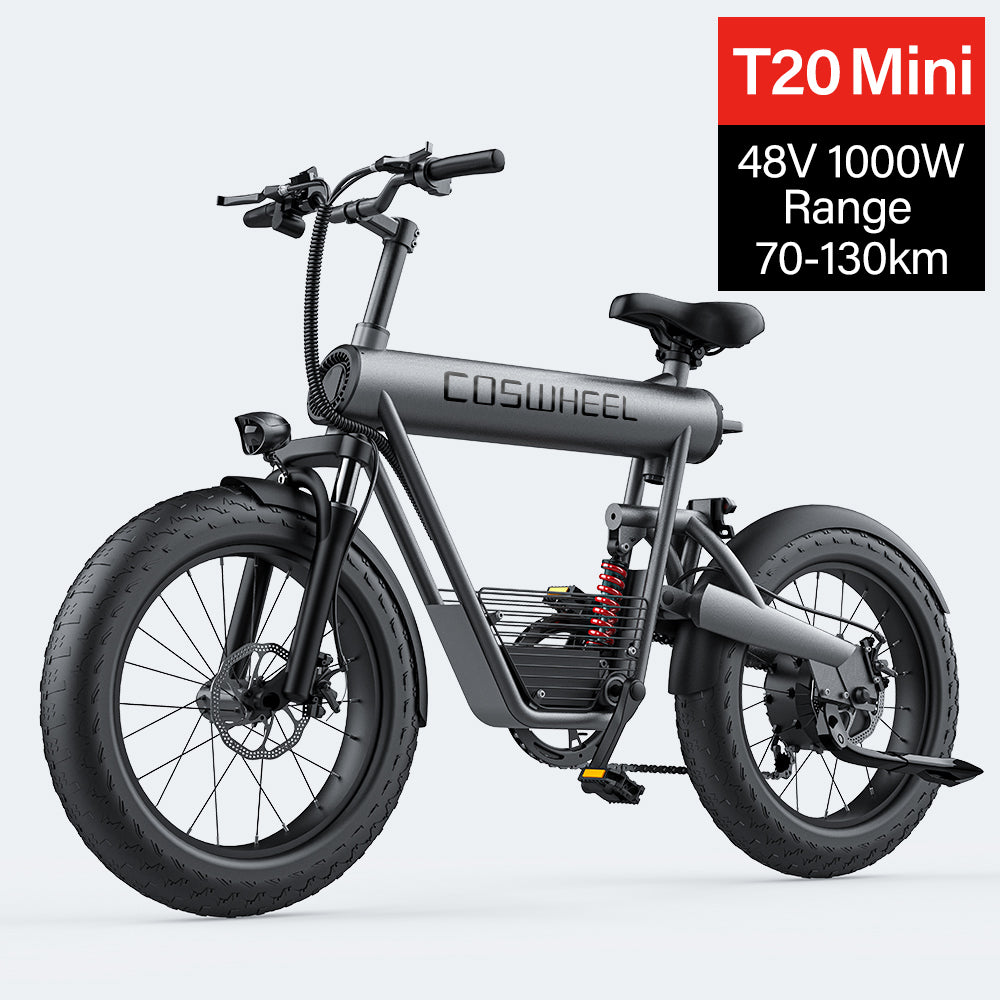

T20mini EBIKE 48V 10/15/20AH ELECTRIC ROAD MOUNTAIN BIKE
Description

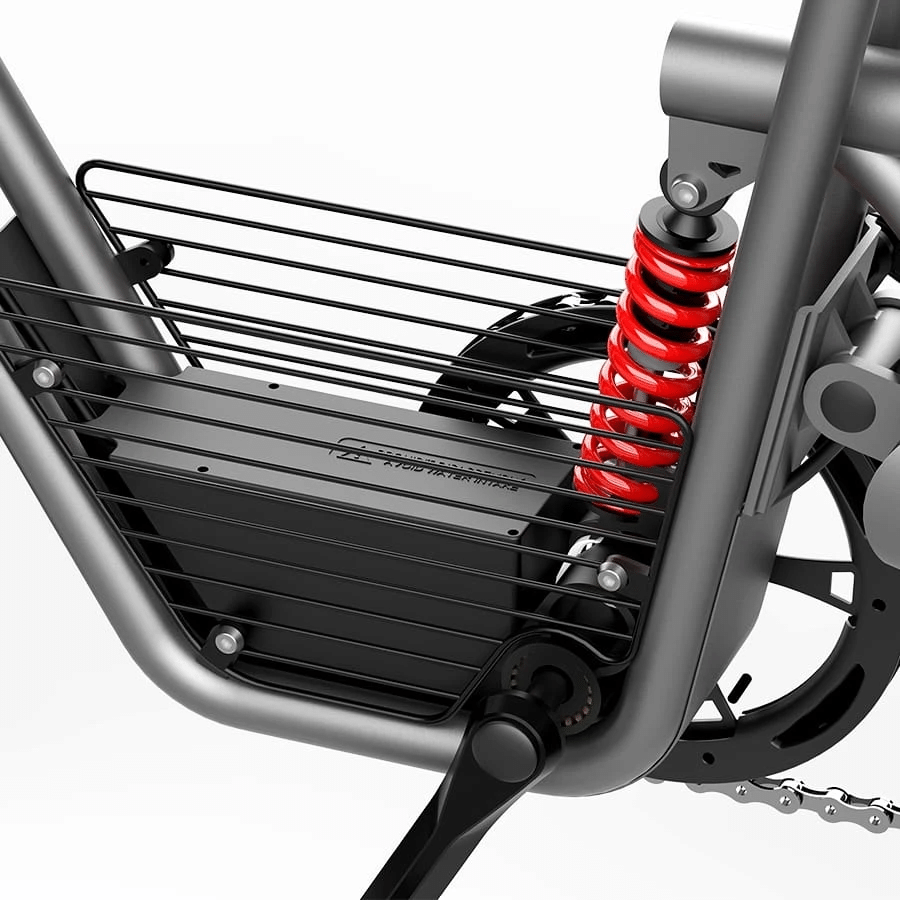

20" * 4" all-terrain fat tire, allow you to control various scenarios easily. The battery is hidden in the frame, elegant and cool. 48V 15ah battery optional, to meet your arbitrary travel range.
Quick Specs:
Battery — 48V - 20AH Lithium Battery
Motor — High torque Brushless Geared Motor.
Bike Frame — AL6061 M Mode.
Display — LCD Display, Battery level, Speed, 5 Speed patterns, Distance Traveled, etc.
Charger — 3.0A Smart Charger.
Rear Cassette — Shimano 7 Gears
Pedal Assist Intelligent — 5 Level Pedal Assist
Tires — 20” x 4”
Charging Time — 5~9 Hours(10-20AH)
Product Weight — 36kg
Recommended Rider Heights — 165cm – 190cm
Total Payload Capacity — 150kgs.
T20 Specifications
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 40+miles (64km) in Class-2 throttle-only mode (pure electricity); 70+miles (113km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1000W (Rated 500W) 50Nm/ Peak 1500W (Rated 1000W) 80Nm Brushless Rear Hub Motor
- Battery: 48V 20Ah Battery (Lithium 18650 Cells)
- Energy: 960Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 1800 Pounds, 180mm Travel, Hole spacing 180mm
- Brakes: Disc Brake, Equipped with 160mm Stainless Brake Disc / Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: Chaoyang Sunny Road Tire 20"*4" IA-5189
- Throttle: Grip Twist Throttle
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours

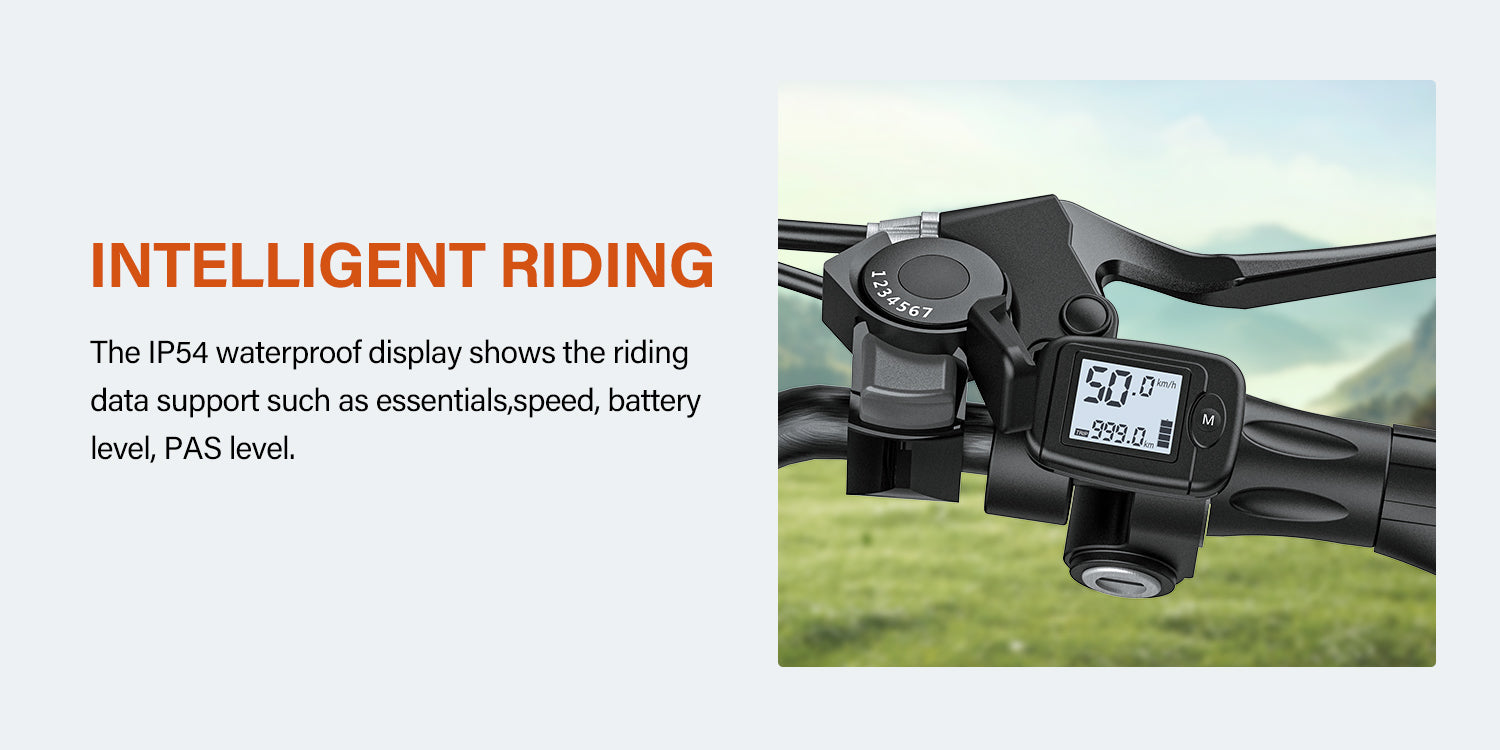

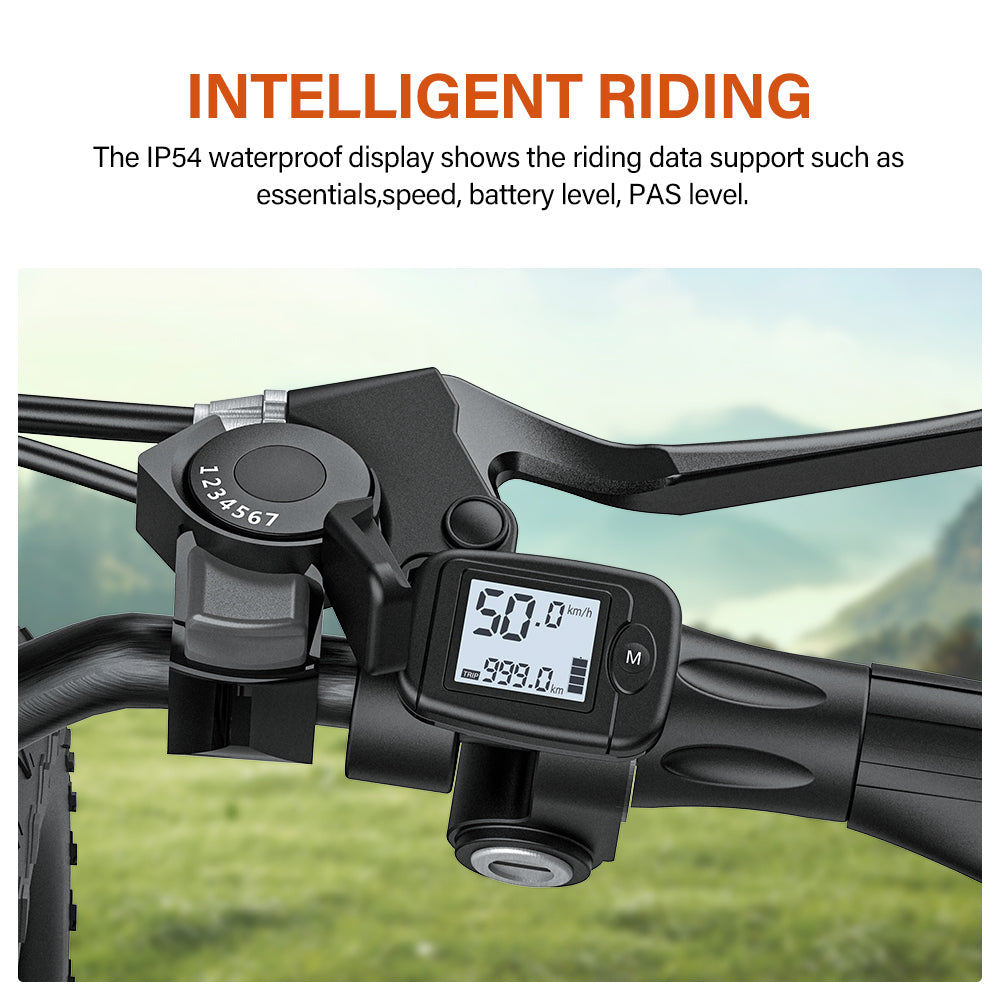

- Display: Easy Read LCD Display
- Controller: 48V 22A

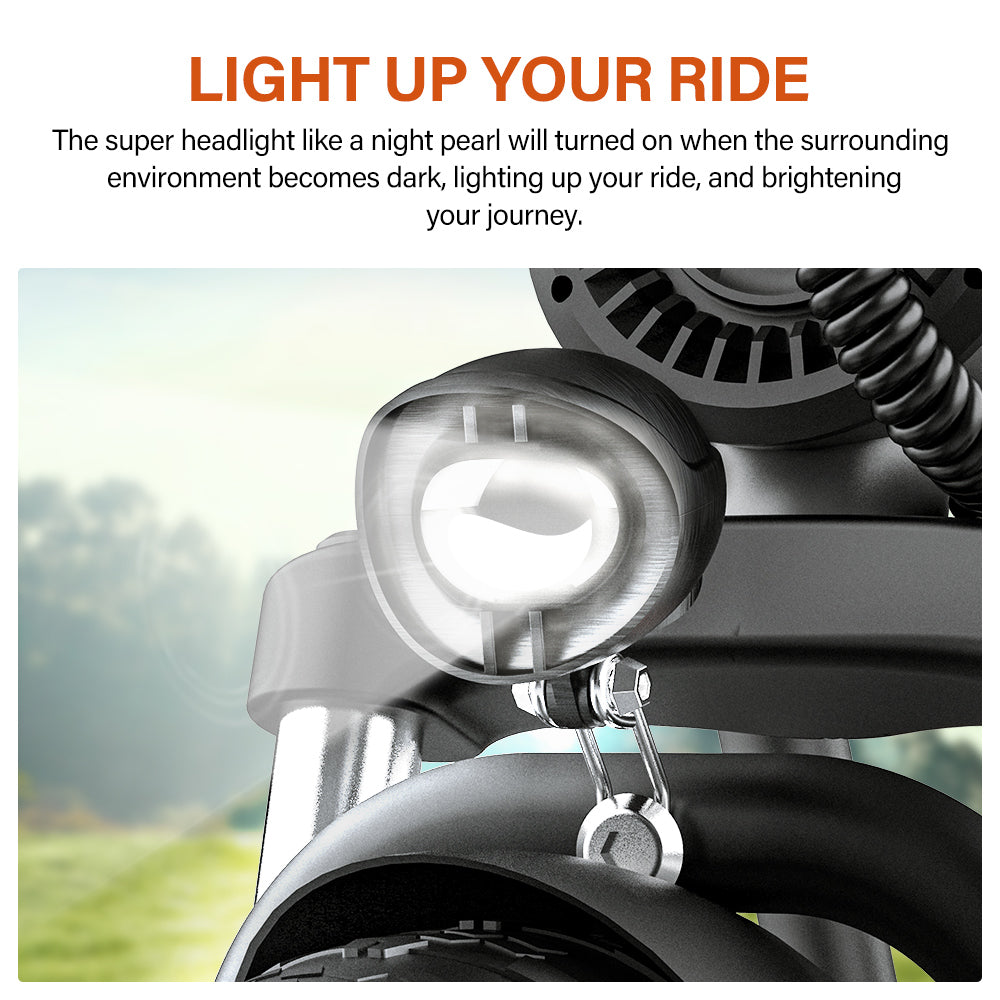

- Front Light: LED
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Iron, Curved Handle, Matte Black 620L*Φ31.8*H: 30 High
Geometry
- Suitable Height: 5'7" - 6'8"
- Seat Height: 35.8" (91cm)
- Bike Height: 45.3" (115cm)
- Wheelbase: 43.3" (110cm)
- Handlebar Width: 25.6" (65cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 25.6" *45.3" (180*65*115cm)
- Package Size: 54.3" * 11.8" * 30.7" (138*30*78cm)
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 40+miles (64km) in Class-2 throttle-only mode (pure electricity); 70+miles (113km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1000W (Rated 500W) 50Nm/ Peak 1500W (Rated 1000W) 80Nm Brushless Rear Hub Motor
- Battery: 48V 20Ah Battery (Lithium 18650 Cells)
- Energy: 960Wh
- Front Suspension: 20" Shoulder Shock Absorbing, 80mm Travel
- Rear Suspension: 1800 Pounds, 180mm Travel, Hole spacing 180mm
- Brakes: Disc Brake, Equipped with 160mm Stainless Brake Disc / Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: Chaoyang Sunny Road Tire 20"*4" IA-5189
- Throttle: Grip Twist Throttle
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 22A
- Front Light: LED
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Iron, Curved Handle, Matte Black 620L*Φ31.8*H: 30 High
- Suitable Height: 5'7" - 6'8"
- Seat Height: 35.8" (91cm)
- Bike Height: 45.3" (115cm)
- Wheelbase: 43.3" (110cm)
- Handlebar Width: 25.6" (65cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 25.6" *45.3" (180*65*115cm)
- Package Size: 54.3" * 11.8" * 30.7" (138*30*78cm)

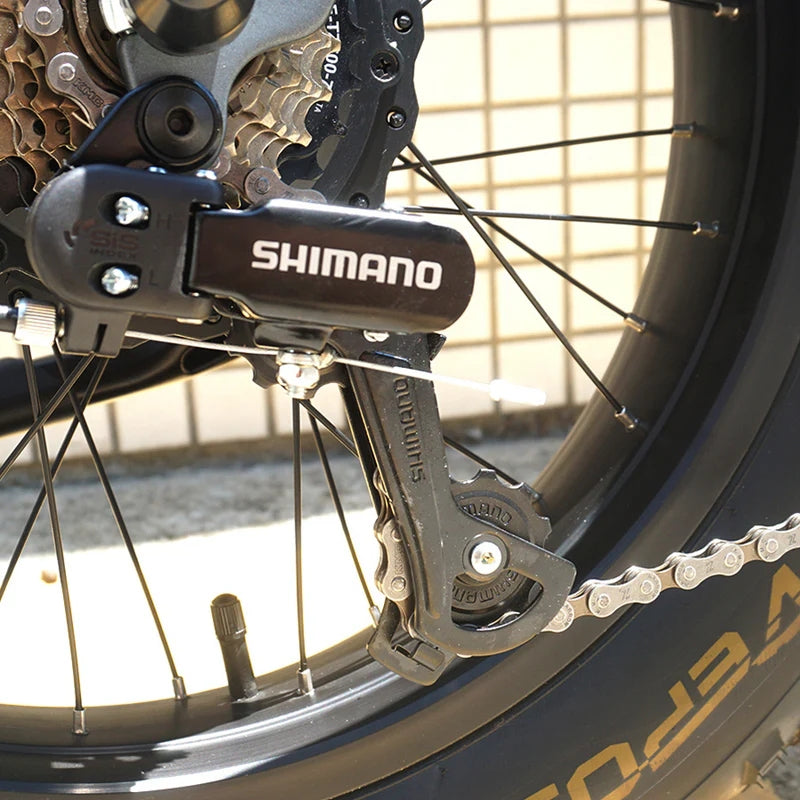

T20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.

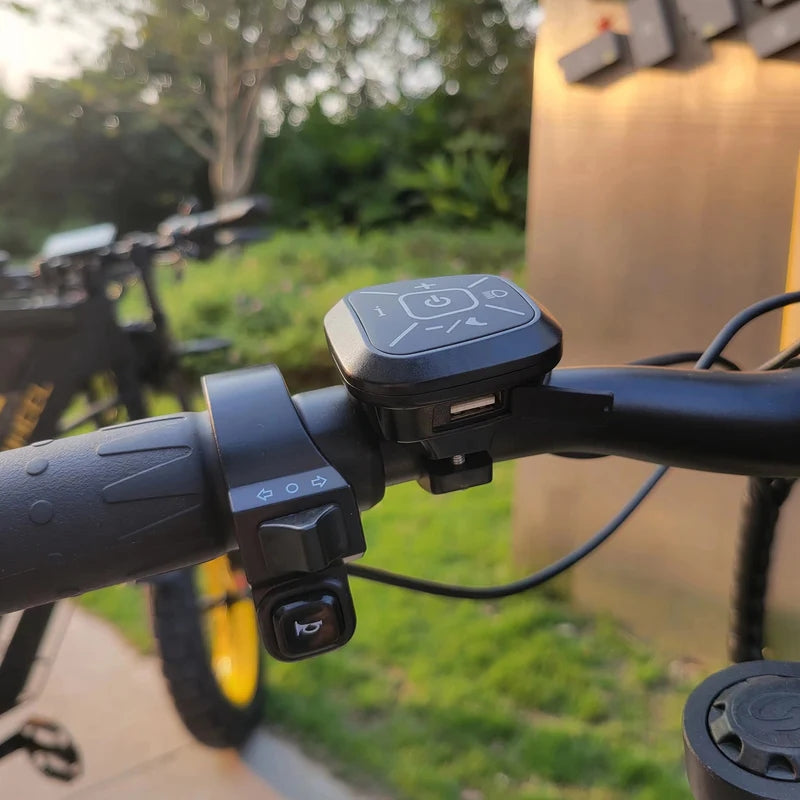

There is a USB 1AH charging port under the T20 display, which is convenient for you to charge your mobile phone with low battery when riding outdoors, ensuring your safety.

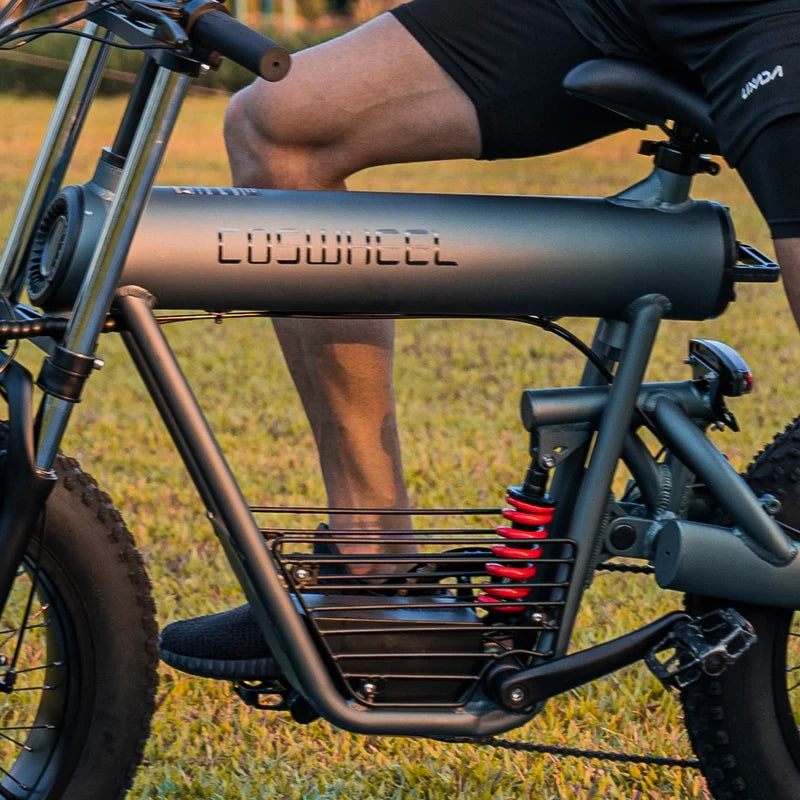

The frame is made of fully customized hydraulically formed three-butted 6061-T6 aluminum alloy. It has been tested for more than 30,000 times and is durable and reliable.

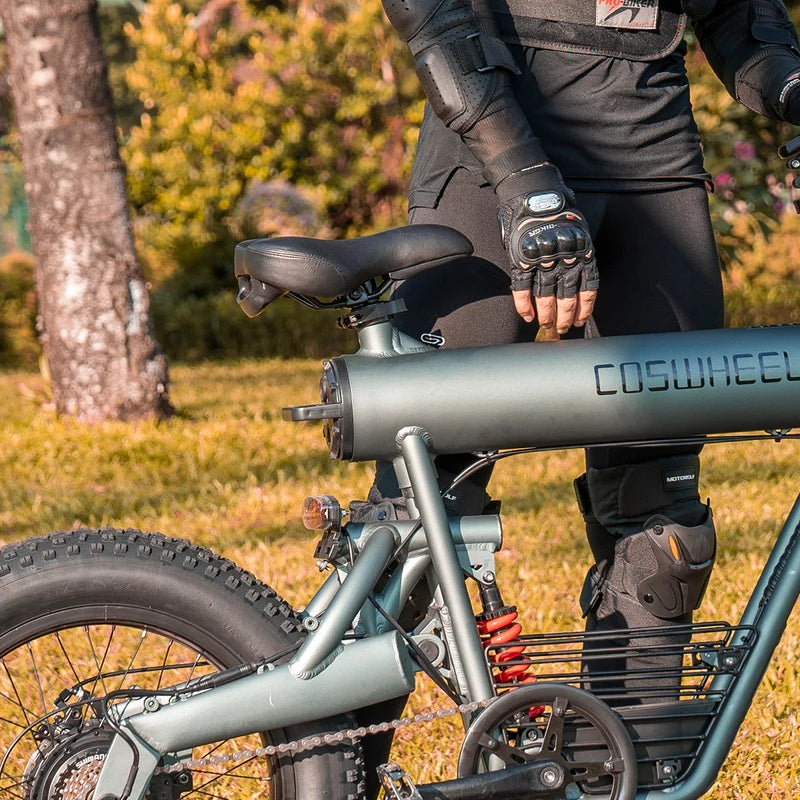

The seat height is adjustable,suitable for people with aheight of 5.3-6.8 (ft).

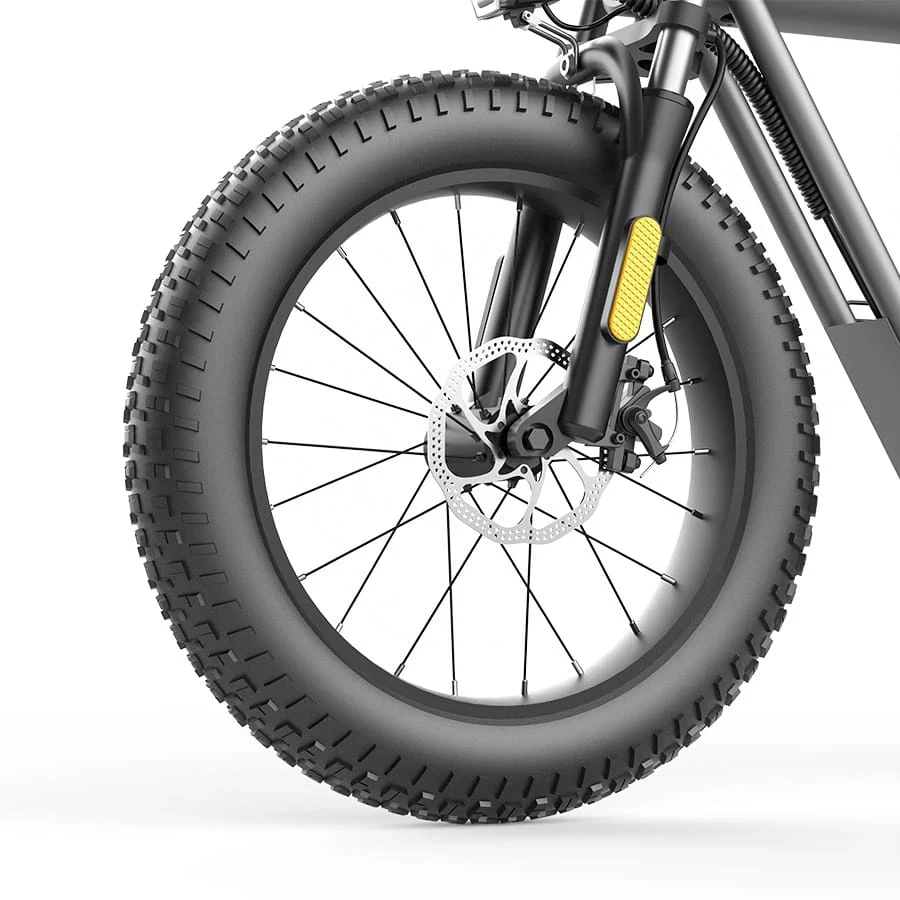

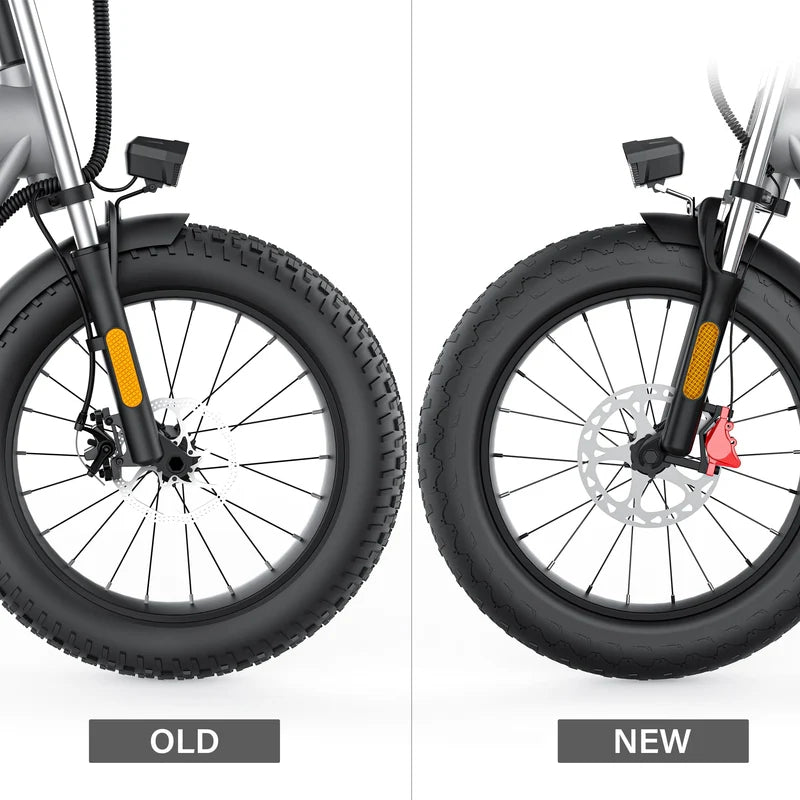

Peak 1000W (rated 500W) with disc brake, 160mm stainless steel brake disc / Peak 1500W (rated 1000W) with dual piston oil brake, 180mm stainless steel brake disc
Both front and rear shock absorption, suspension travel 180MM，good resilience, so you are not afraid of any road.
T20 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.
There is a USB 1AH charging port under the T20 display, which is convenient for you to charge your mobile phone with low battery when riding outdoors, ensuring your safety.
The frame is made of fully customized hydraulically formed three-butted 6061-T6 aluminum alloy. It has been tested for more than 30,000 times and is durable and reliable.
The seat height is adjustable,suitable for people with aheight of 5.3-6.8 (ft).
Peak 1000W (rated 500W) with disc brake, 160mm stainless steel brake disc / Peak 1500W (rated 1000W) with dual piston oil brake, 180mm stainless steel brake disc
Both front and rear shock absorption, suspension travel 180MM，good resilience, so you are not afraid of any road.
