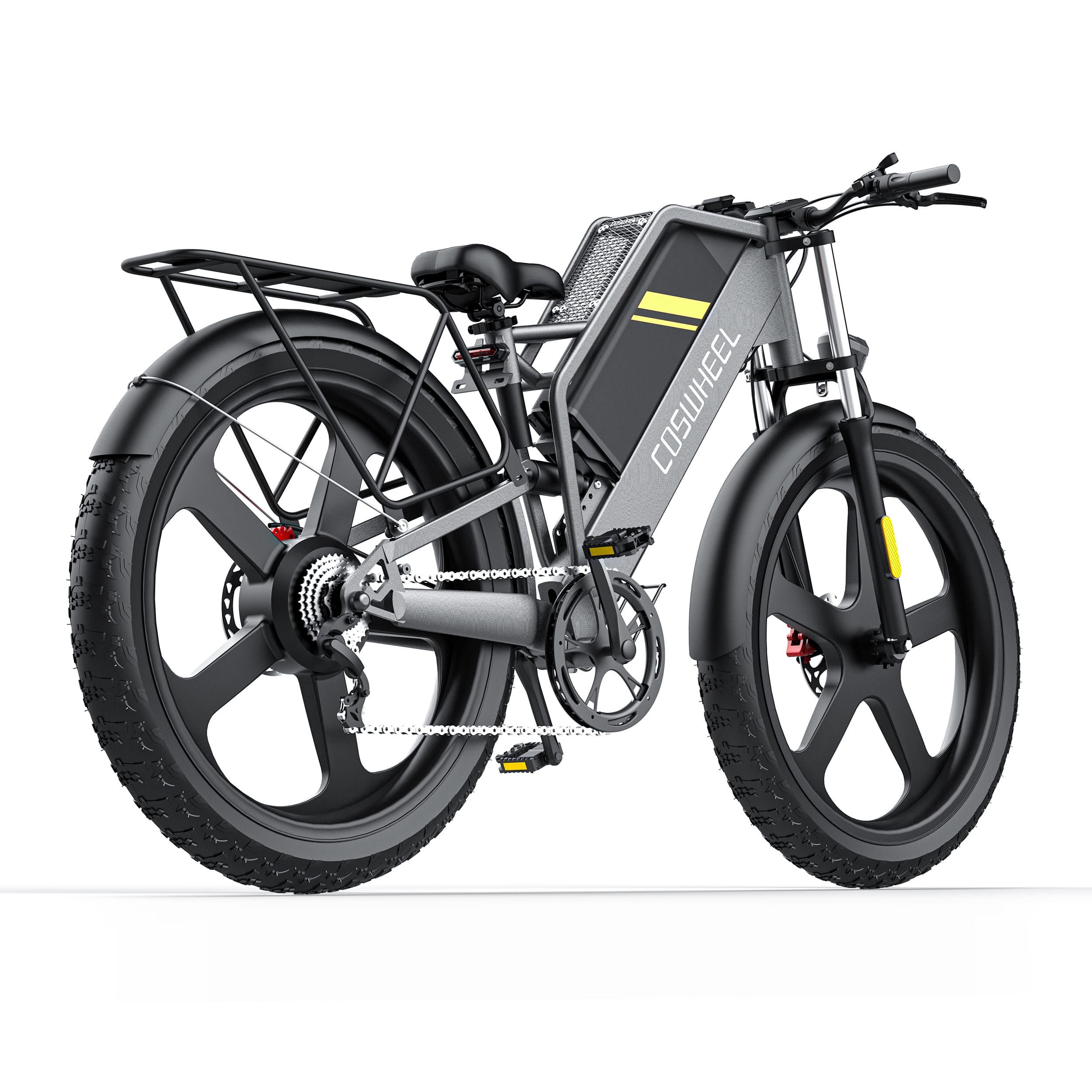

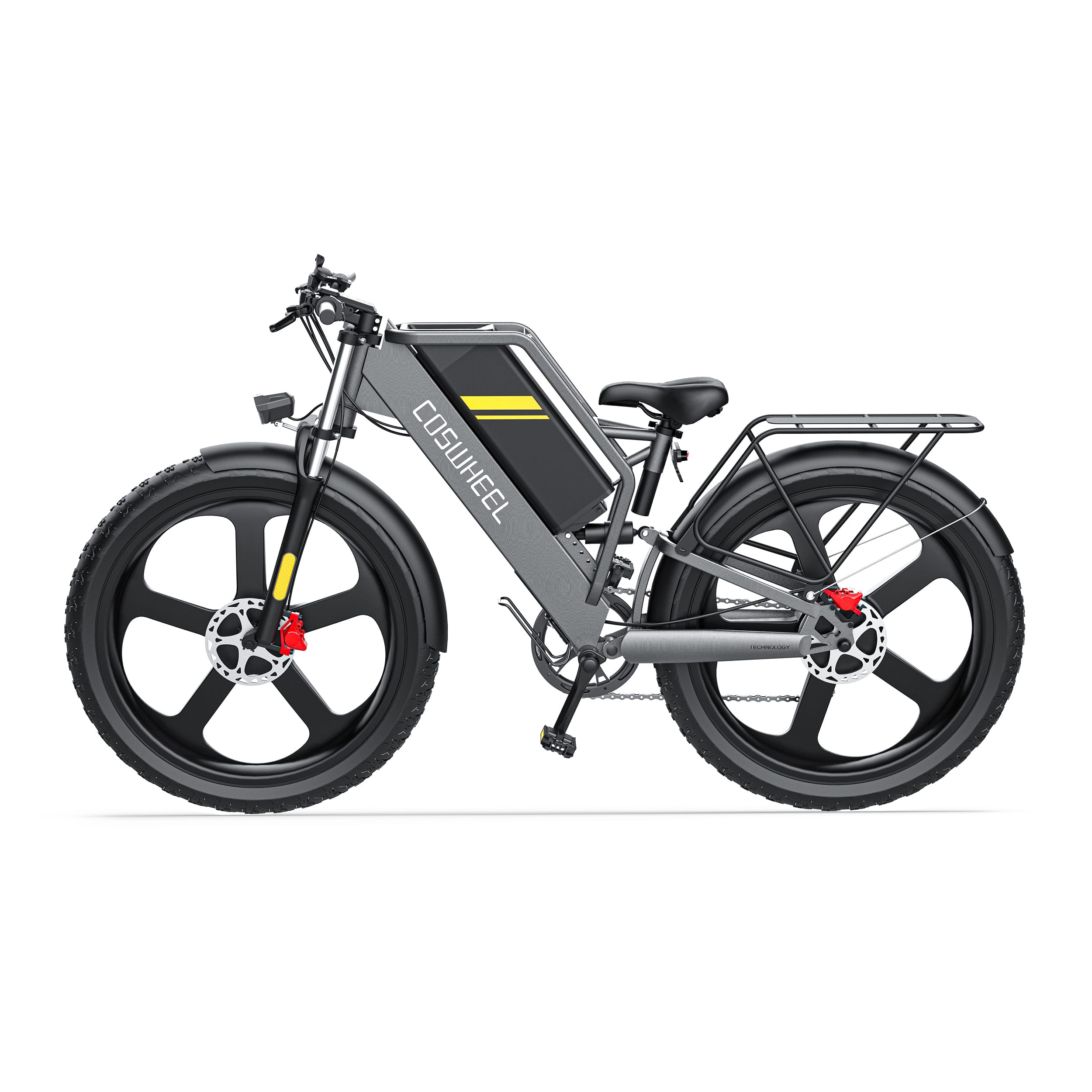

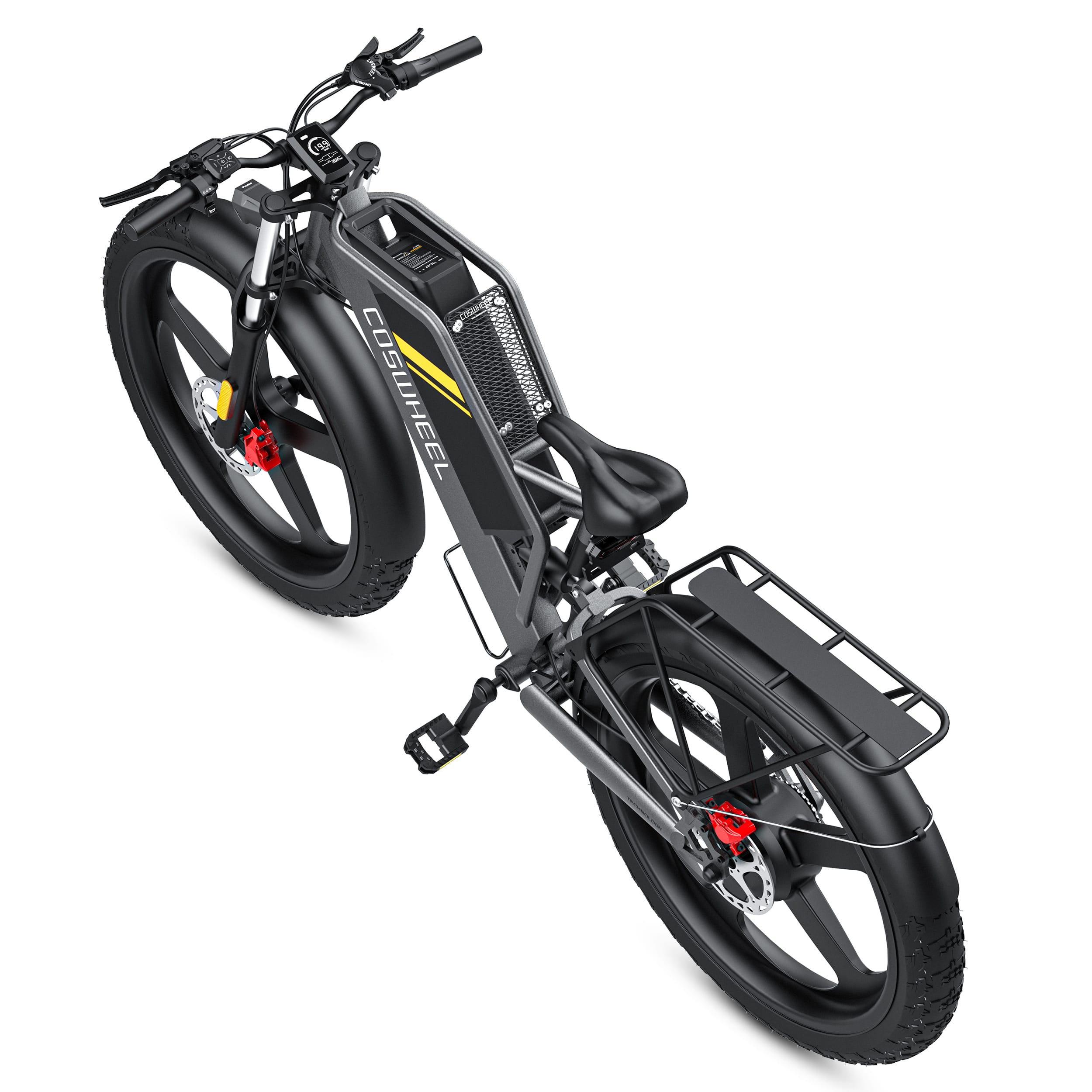

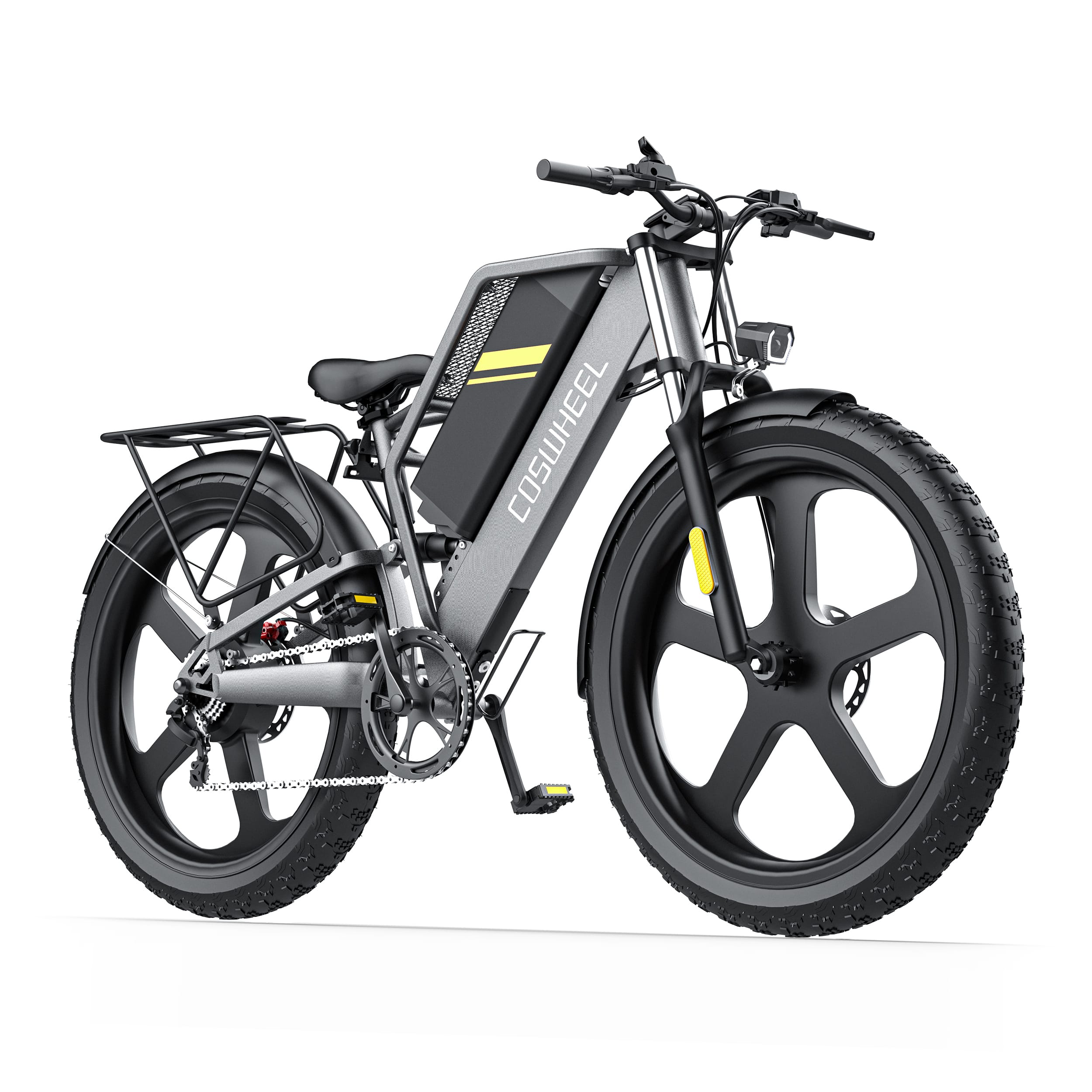

T26 EBIKE
T26 Specifications
Performance
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 30-50+miles (48-80km) in Class-2 throttle-only mode (pure electricity); 70-87+miles (113-140km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m

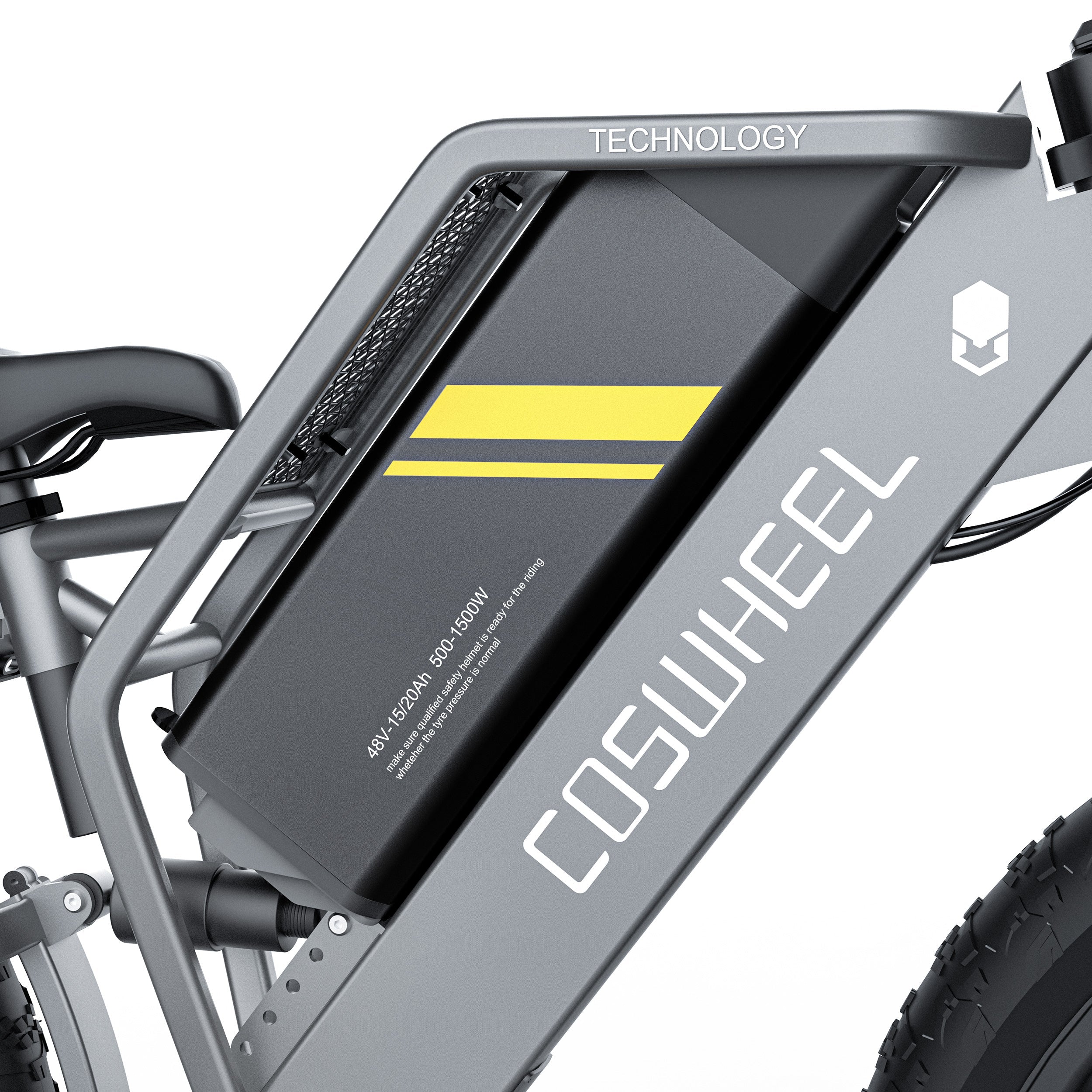

- Battery: 48V 20/25Ah Battery (Lithium 18650 Cells)
- Energy: 960/1200Wh
- Front Suspension: 26" Full Aluminum Double Shoulder Snow Suspension, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: CHAOYANG Off-road Tire 26" * 4.0" H5176 30TPI with AV+ Lining Belt

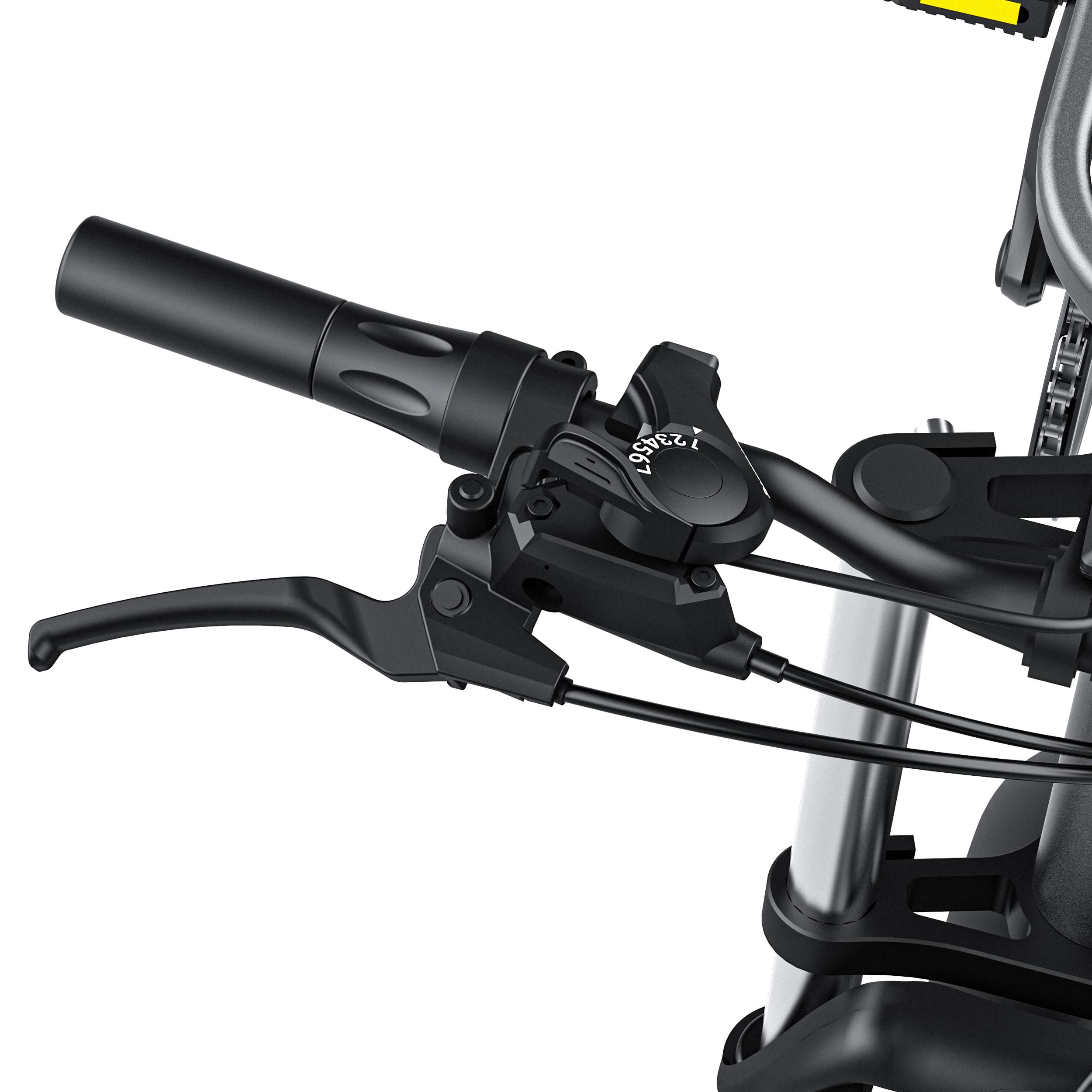

- Throttle: Grip Twist Throttle
Electronics
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours

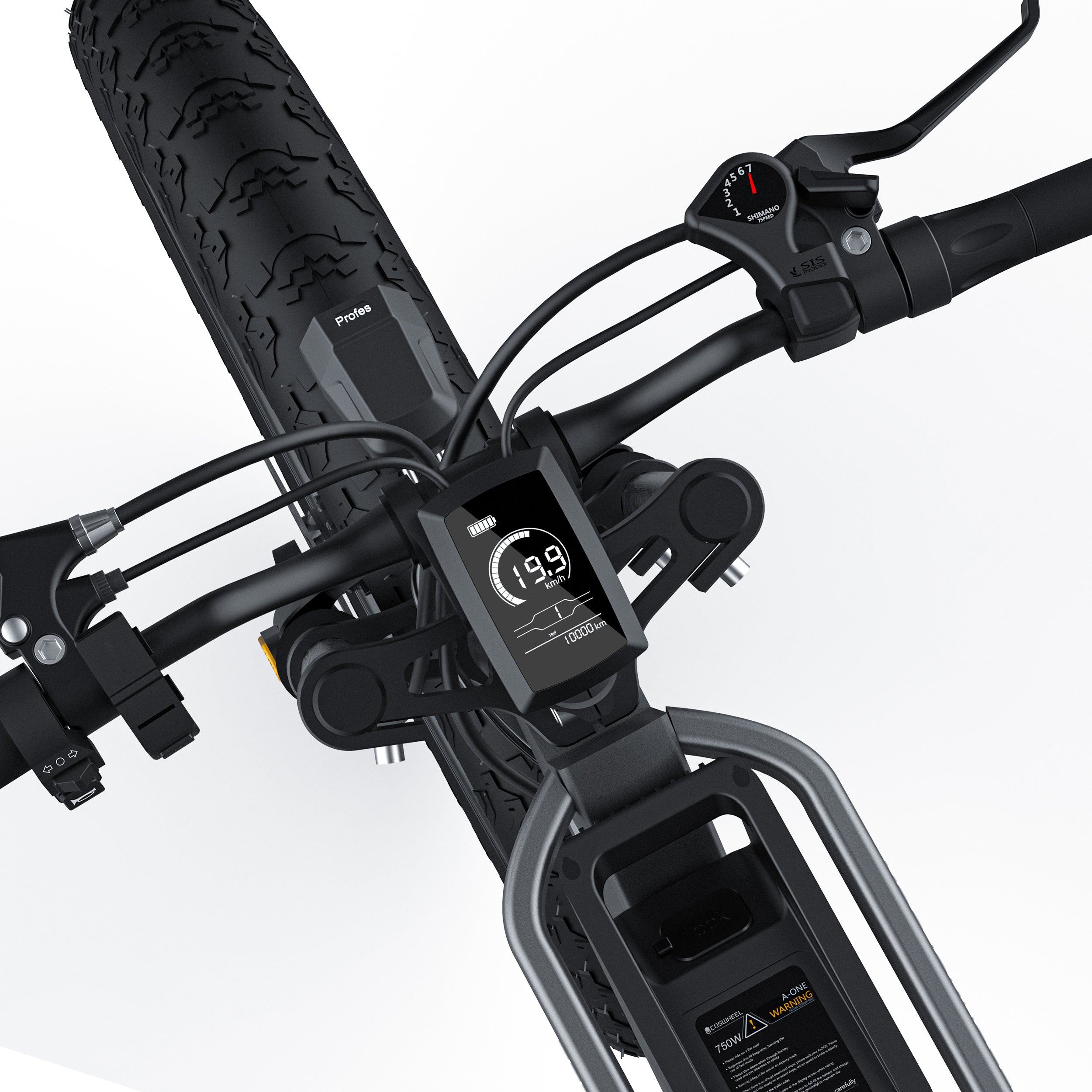

- Display: Easy Read LCD Display
- Controller: 48V 28A

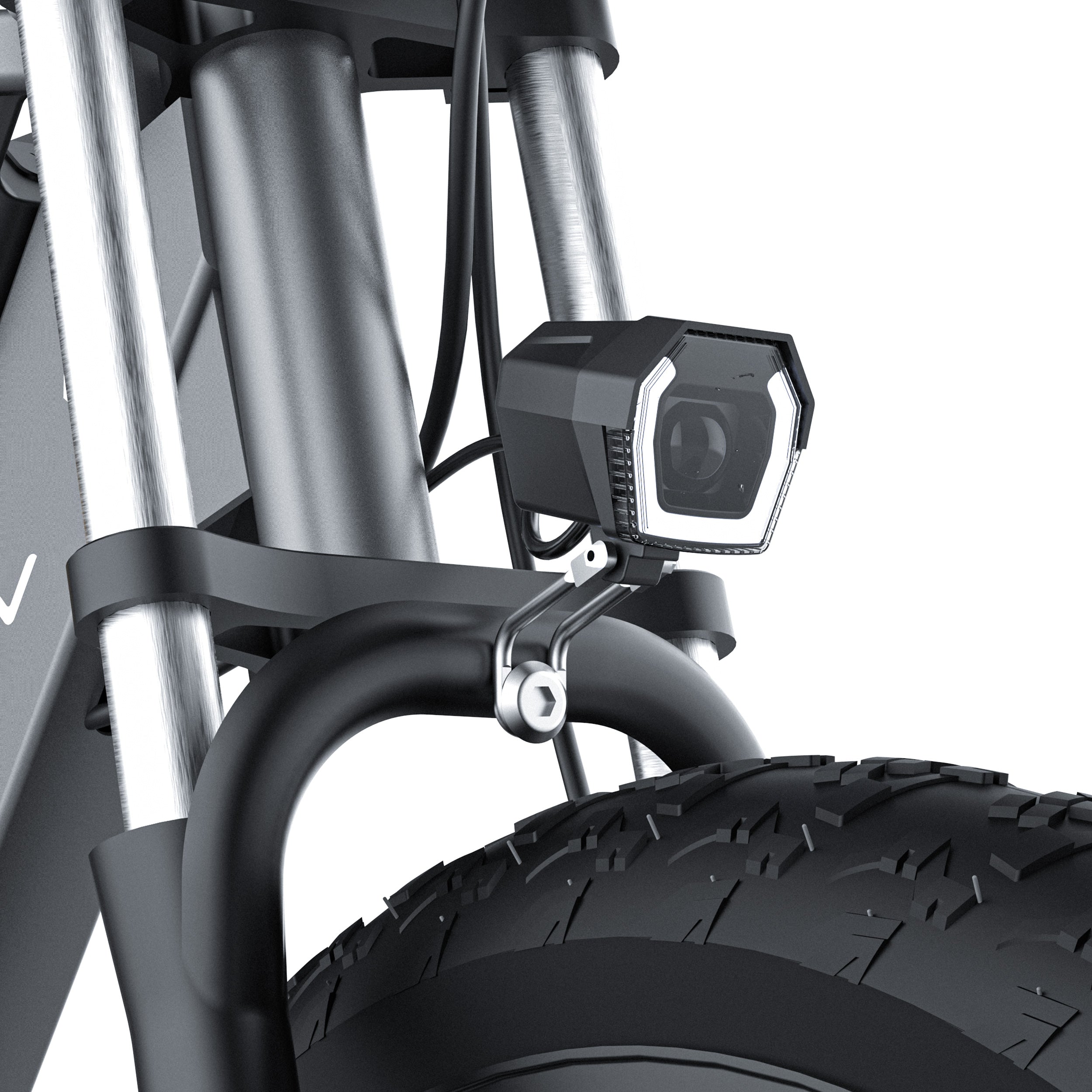

- Front Light: Classic Angel Eye Headlight, 120 LUX

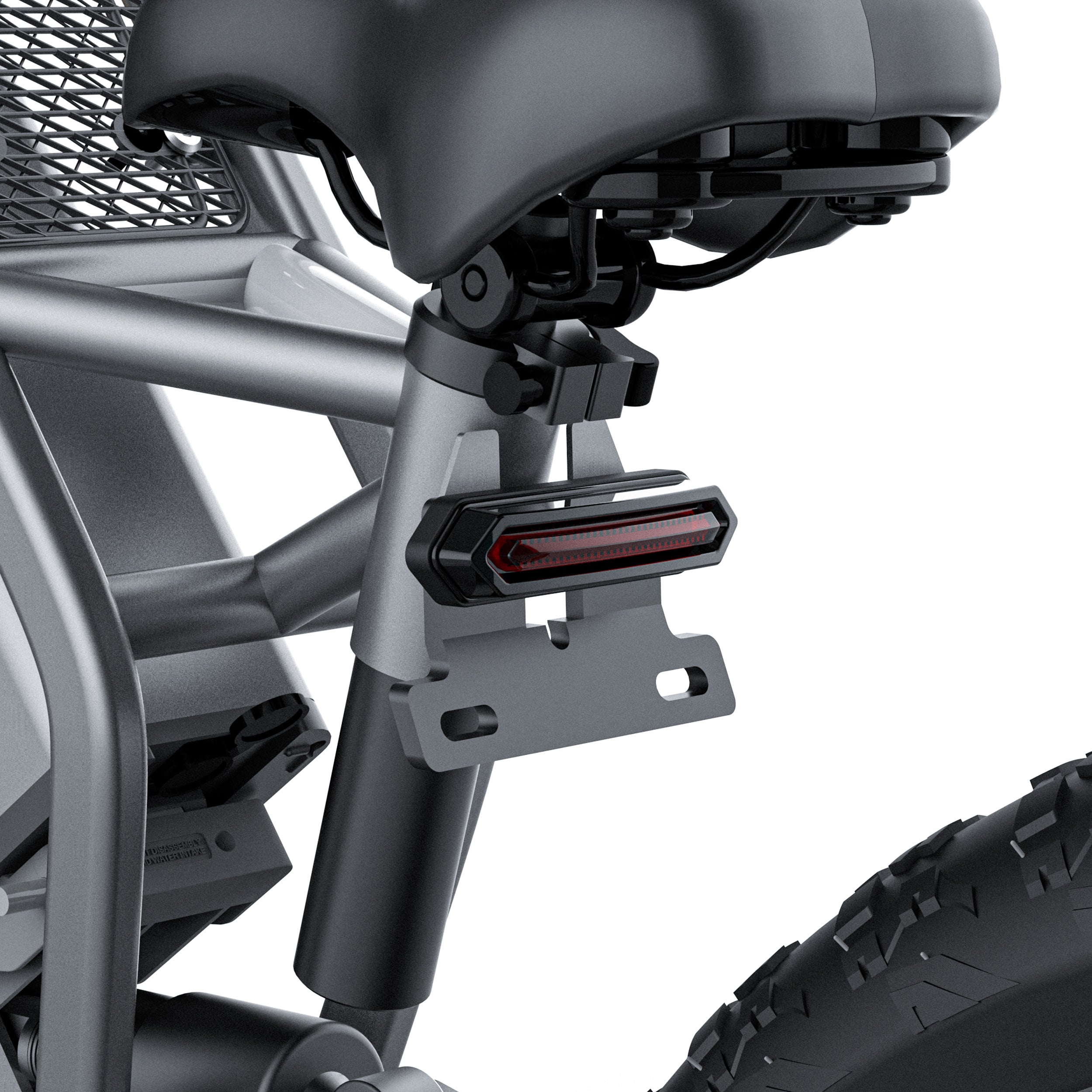

- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
Components
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Bend Handlebar, φ620*31.8*H:30
Geometry
- Suitable Height: 5'3" - 6'5"
- Seat Height: 35.4" (90cm)
- Bike Height: 47.3" (120cm)
- Wheelbase: 49.2" (125cm)
- Handlebar Width: 25.6" (65cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 25.6" *47.3" (180*65*120cm)
- Package Size: 65" * 13.4" * 35.4" (165*34*90cm)
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 30-50+miles (48-80km) in Class-2 throttle-only mode (pure electricity); 70-87+miles (113-140km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1500W (Rated 1000W) Brushless Rear Hub Motor 80N.m
- Battery: 48V 20/25Ah Battery (Lithium 18650 Cells)
- Energy: 960/1200Wh
- Front Suspension: 26" Full Aluminum Double Shoulder Snow Suspension, 80mm Travel
- Rear Suspension: 850 Pounds, 180mm Travel
- Brakes: Double Piston Oil Brake, Equipped with 180mm Stainless Brake Disc
- Tires: CHAOYANG Off-road Tire 26" * 4.0" H5176 30TPI with AV+ Lining Belt
- Throttle: Grip Twist Throttle
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours
- Display: Easy Read LCD Display
- Controller: 48V 28A
- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: 5 Levels
- Sensors: Speed Sensor
- Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
- Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
- Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
- Rear Derailleur: Shimano 7-Speed
- Chain: 7-speed Anti-rust, 1/2" * 3/32"
- Handlebars: Bend Handlebar, φ620*31.8*H:30
- Suitable Height: 5'3" - 6'5"
- Seat Height: 35.4" (90cm)
- Bike Height: 47.3" (120cm)
- Wheelbase: 49.2" (125cm)
- Handlebar Width: 25.6" (65cm)
- Bike Weight: ≥88lbs (with Battery) (≥40kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 70.9" * 25.6" *47.3" (180*65*120cm)
- Package Size: 65" * 13.4" * 35.4" (165*34*90cm)

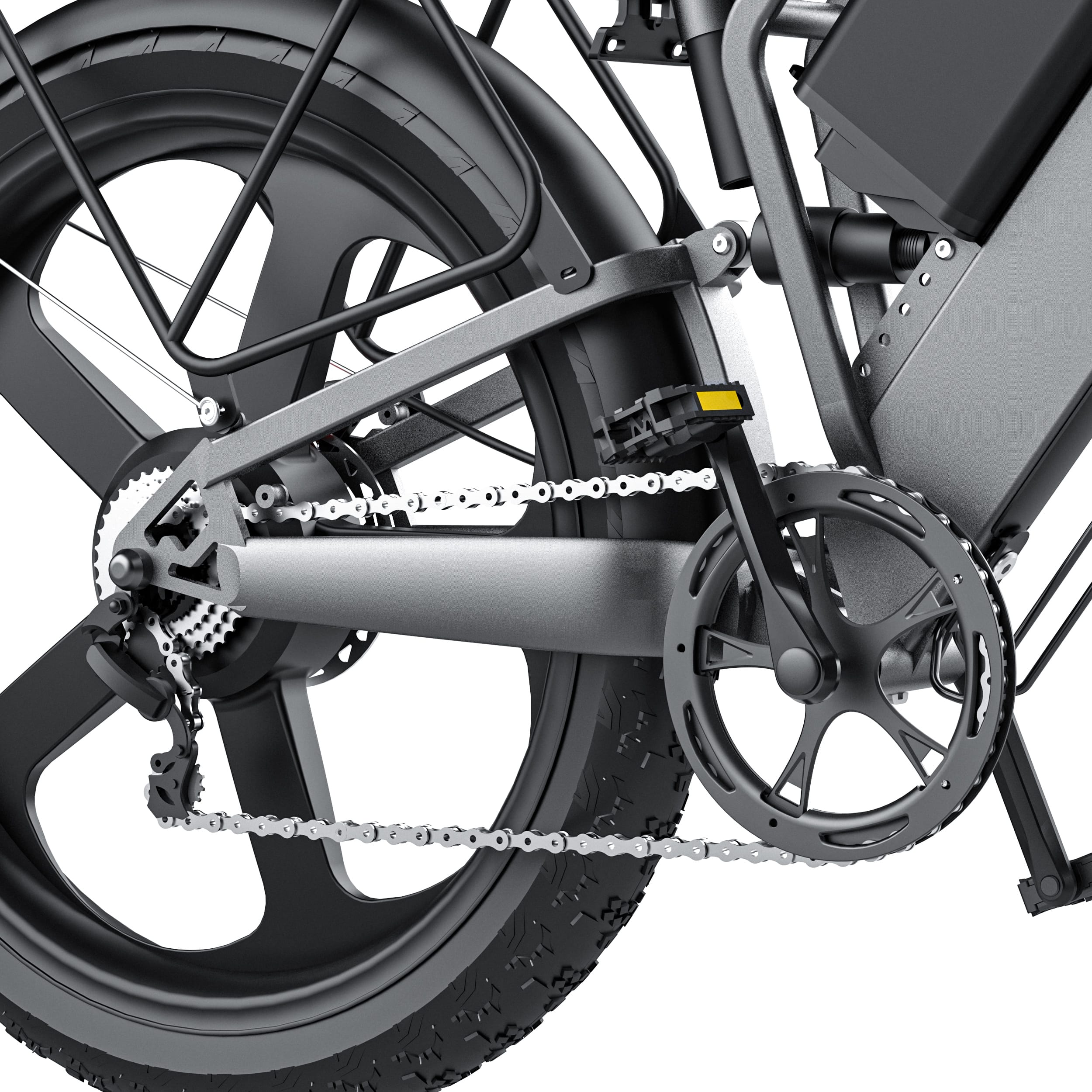

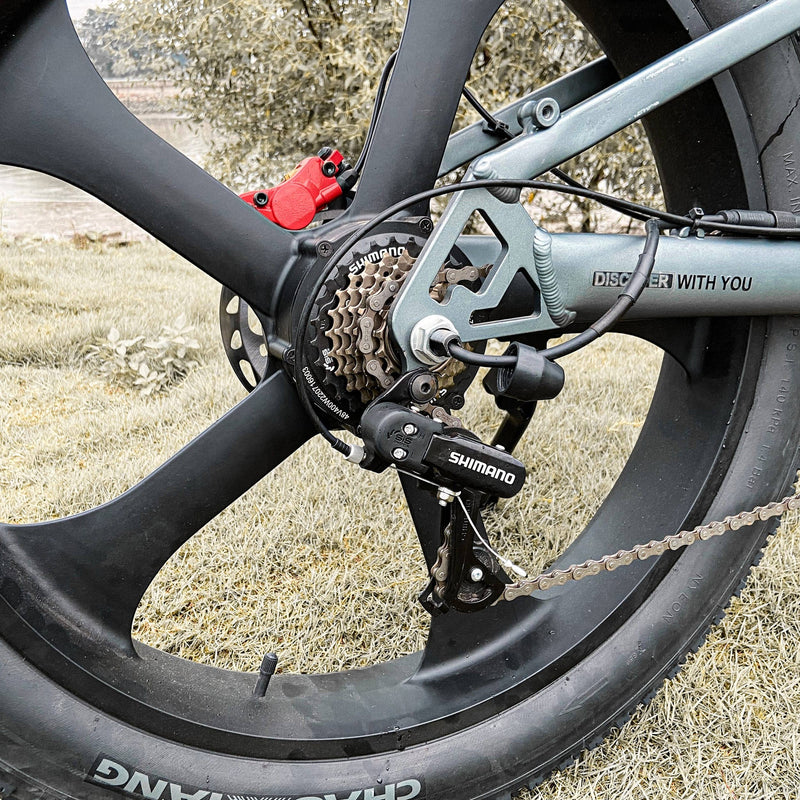

T26 is fully equipped with Shimano seven-speed cassette, which allows you to drive smoothly and climb easily on steep roads.

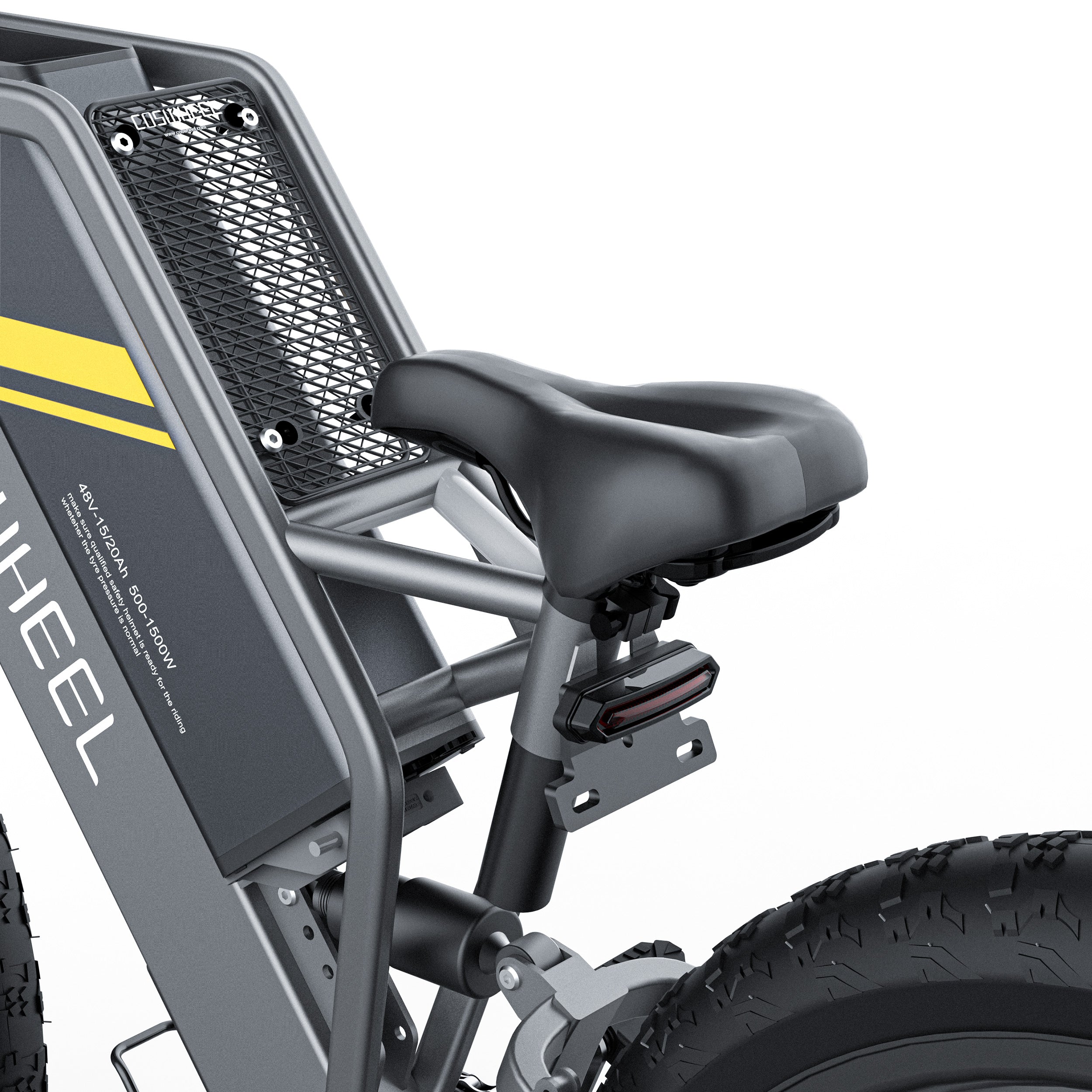

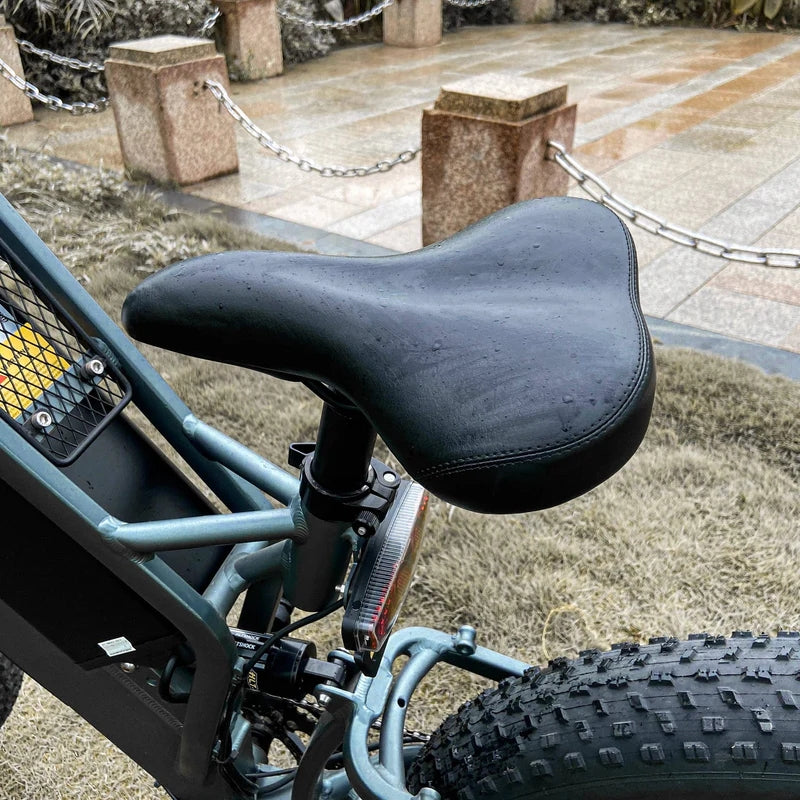

The seat is adjustable, suitable for people with a height of 5.3-6.8(ft) to ride.

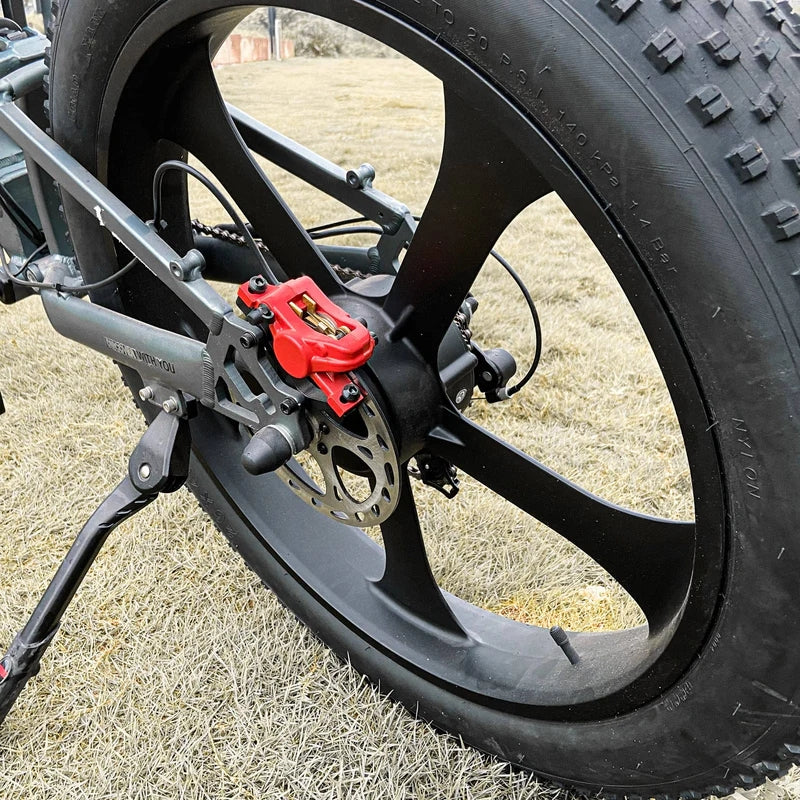

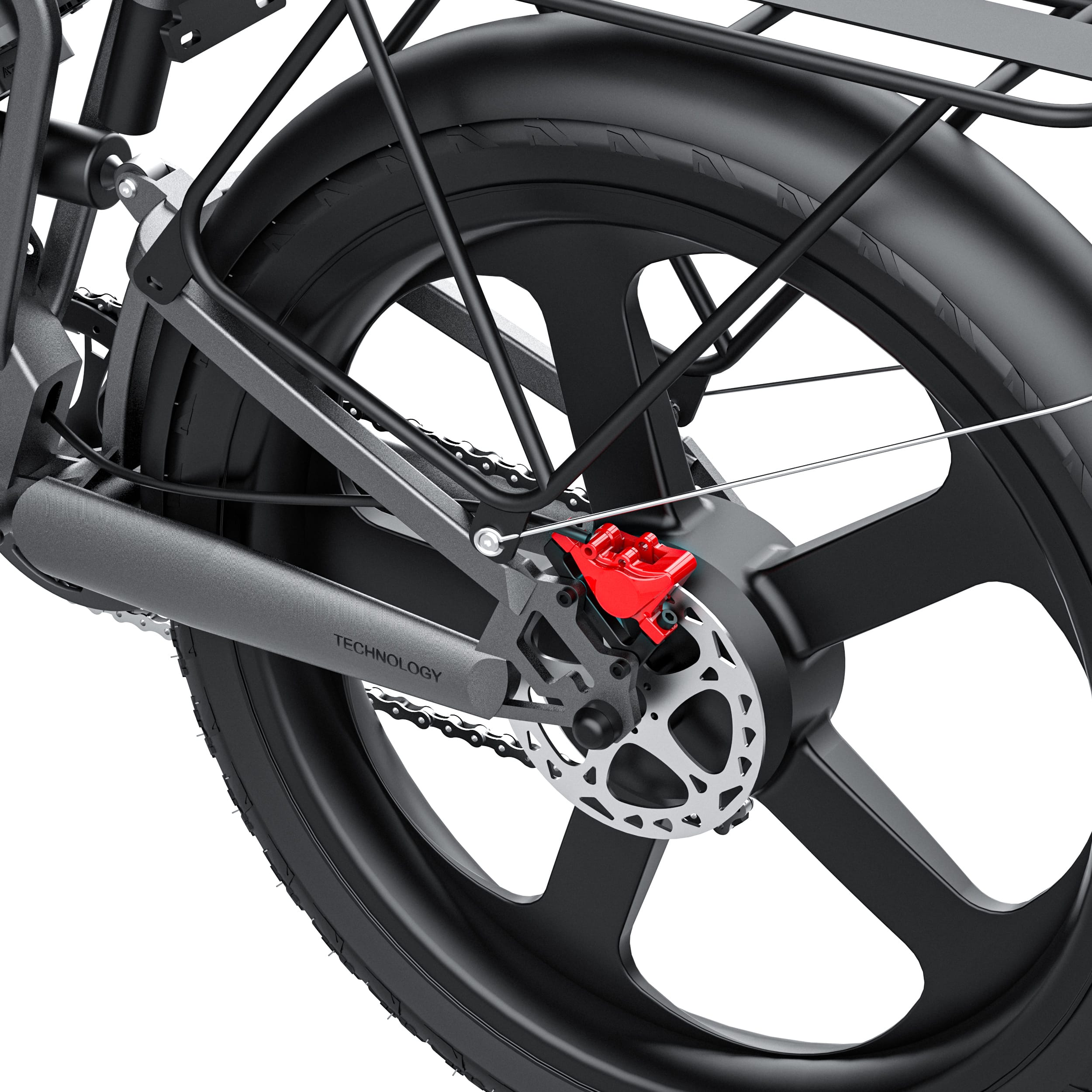

Front and rear motorcycle-level dual-piston hydraulic oil brakes, equipped with 180MM high-quality brake discs, make your riding safer.

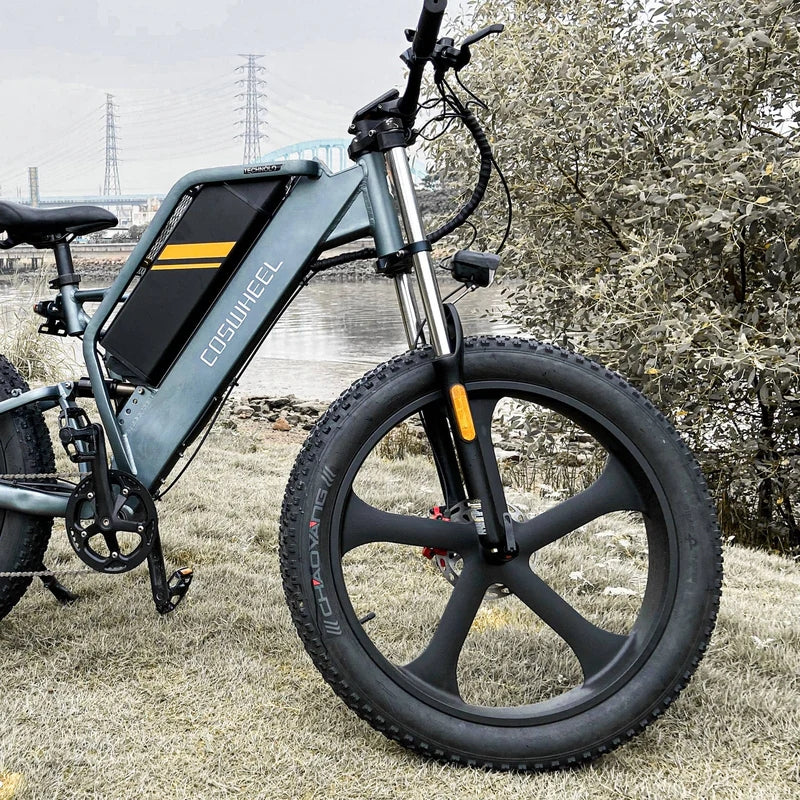

T26 is equipped with 26"*20" all-terrain tires, which can pass through various roads easily.

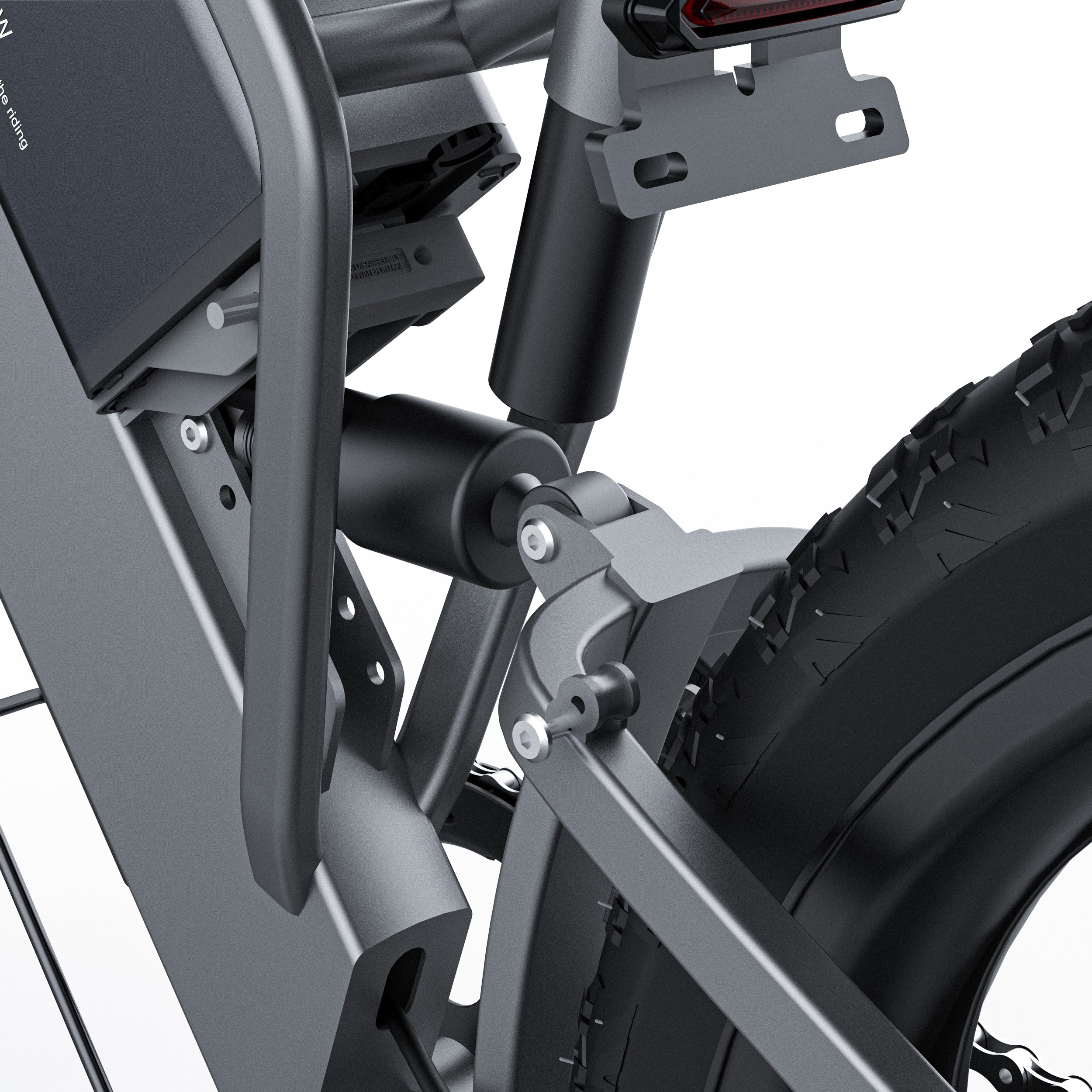

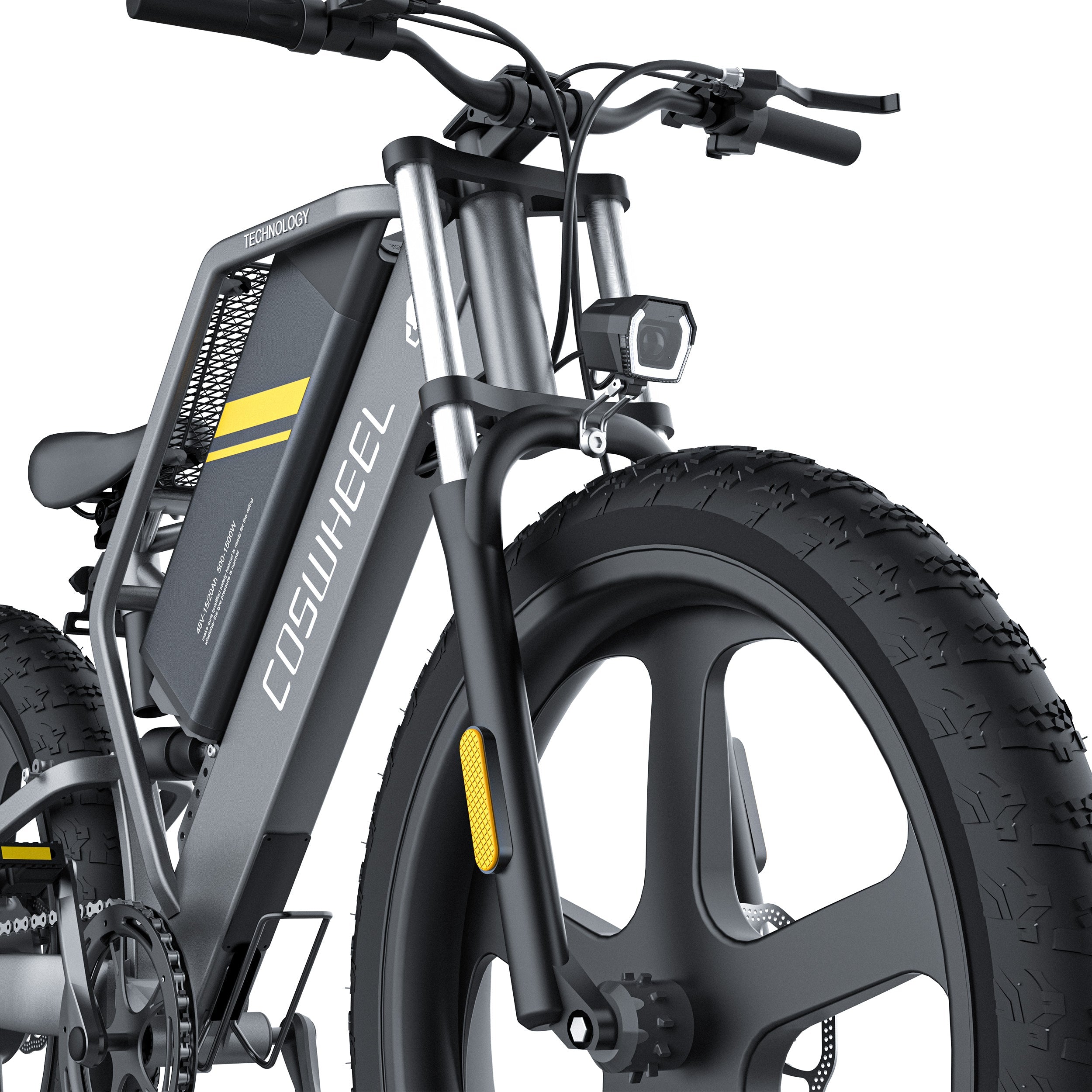

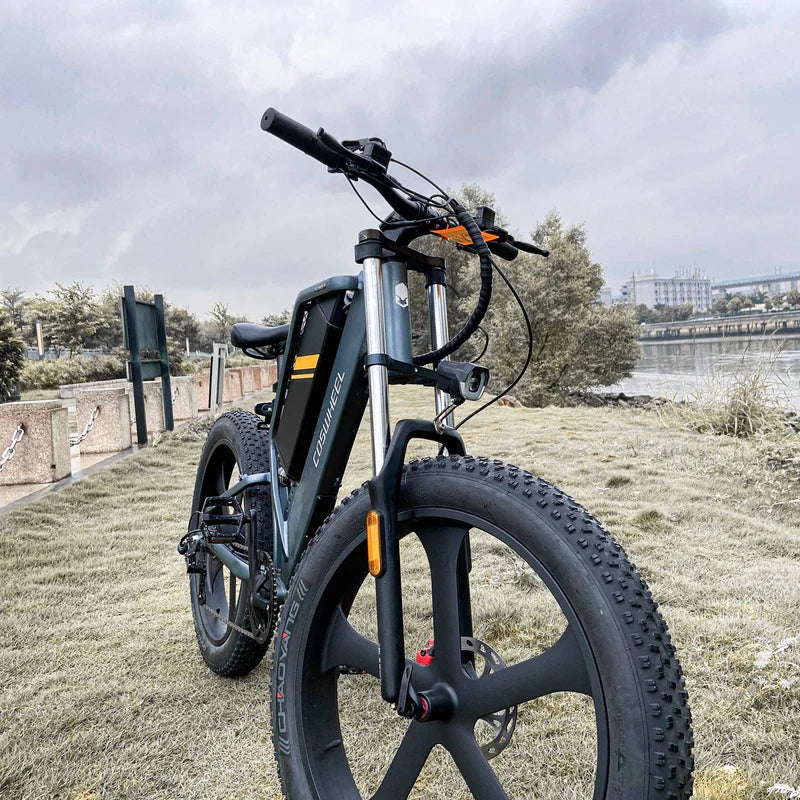

Both front and rear shock absorption, suspension travel 180MM, good resilience, so you are not afraid of any road.
